SKU: UKPAE212HN-SNR

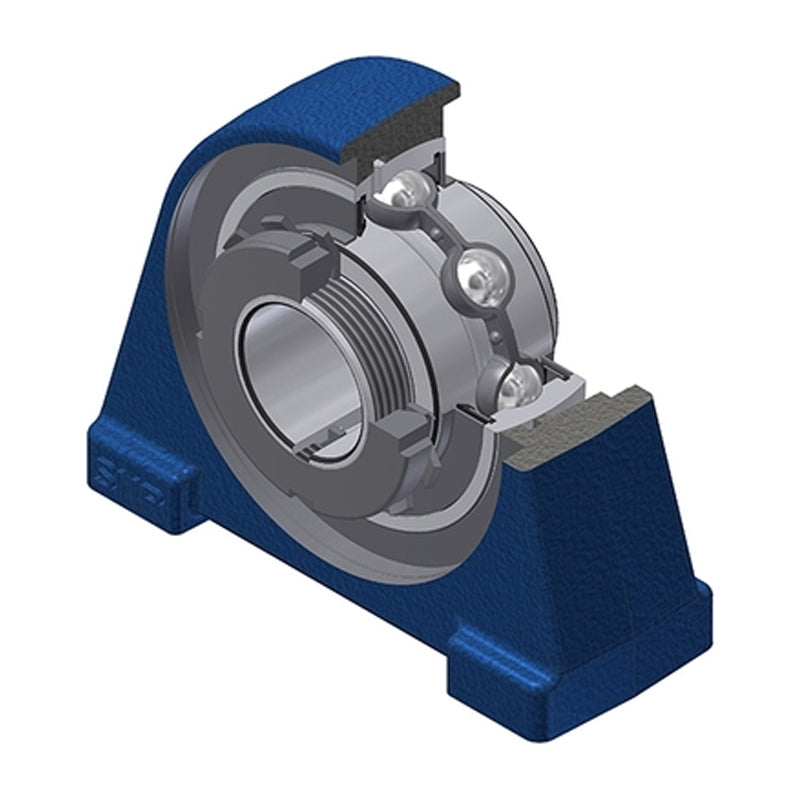

SNR UKPAE212HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 55mm Shaft - Allow 2-3 Days
SNR UKPAE212HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 55mm Shaft - Allow 2-3 Days
Regular price
CHF 174.00
ex VAT
Regular price
Sale price
CHF 174.00
ex VAT
In stock
Price Break
3+
CHF 153.48
4+
CHF 147.28
9+
CHF 144.18
19+
CHF 139.53
49+
CHF 136.43
99+
CHF 128.67
499+
CHF 108.52
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UKPAE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 60mm |
| A1 | 42mm |
| B | 36mm |
| d1 | 80mm |
| E | 20mm |
| H | 69.9mm |
| H1 | 16mm |
| H2 | 140mm |
| J | 118mm |
| L | 150mm |
| L1 | 32mm |
| N | M16 |
| s1 | 31mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2312 |
| Mass | 4.11 kg |
