SKU: UKSP205HCC-SNR

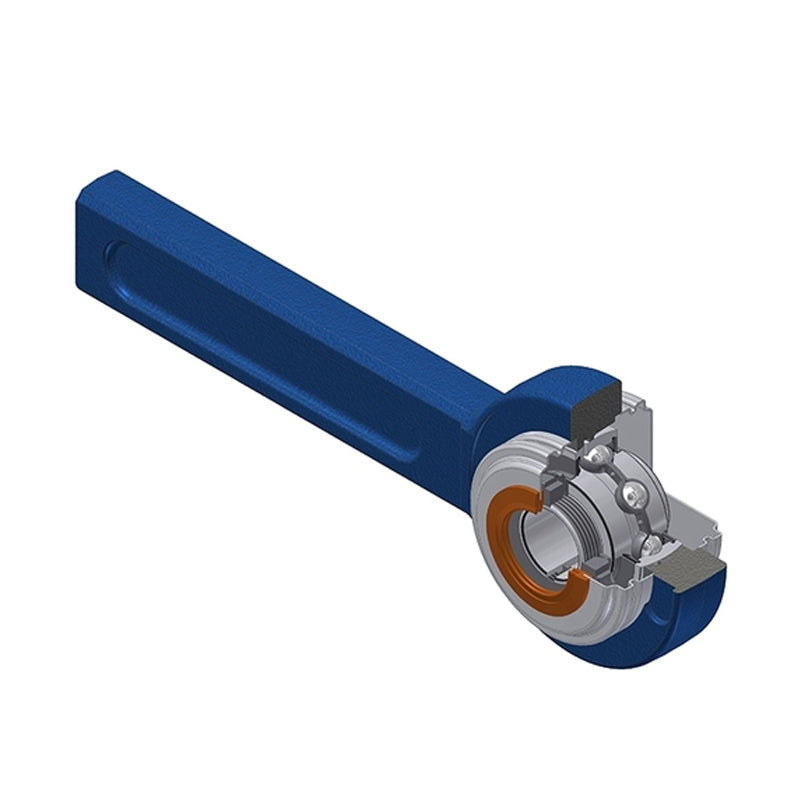

SNR UKSP205HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days

SNR UKSP205HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
Regular price CHF 124.00 ex VAT
Regular price Sale price CHF 124.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 109.67
4+ CHF 105.24
9+ CHF 103.03
19+ CHF 99.70
49+ CHF 97.49
99+ CHF 91.95
499+ CHF 77.55
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 20mm
A 21mm
B1 35mm
d1 38mm
H 78mm
H2 41mm
L 264mm
L1 225mm
Dz 60mm
Z 47.8mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Adaptor sleeve H2305
Mass 1.612 kg
