SKU: UKSP206H-SNR

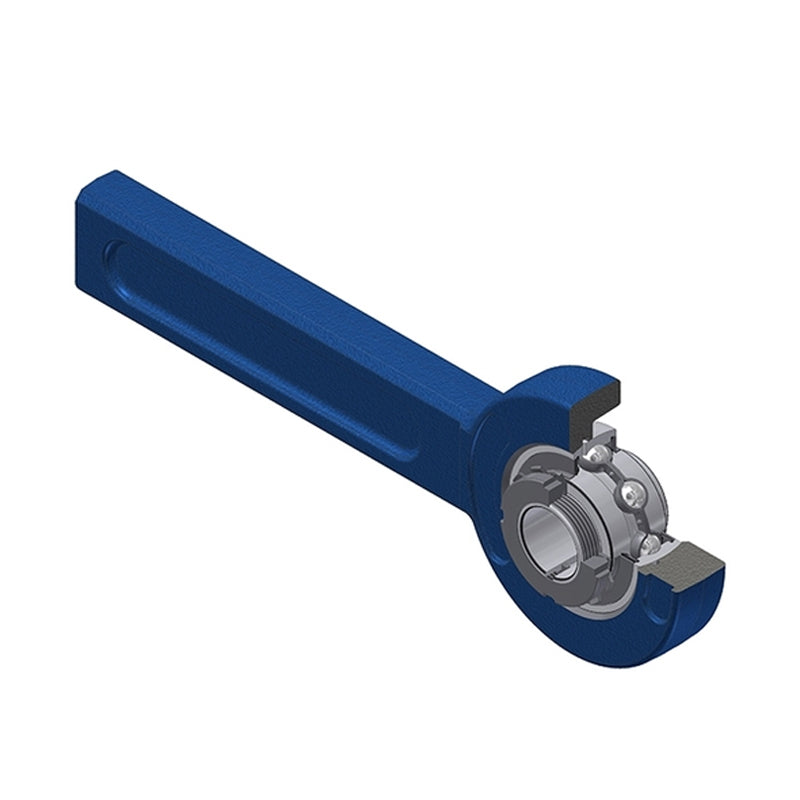

SNR UKSP206H Metric Cast Iron Tensioner Unit with Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
SNR UKSP206H Metric Cast Iron Tensioner Unit with Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.81
4+
CHF 63.15
9+
CHF 61.82
19+
CHF 59.82
49+
CHF 58.49
99+
CHF 55.17
499+
CHF 46.53
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UKSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 21mm |
| B1 | 38mm |
| d1 | 45mm |
| H | 98mm |
| H2 | 41mm |
| L | 274mm |
| L1 | 225mm |
| s1 | 20.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR11 |
| Stretcher frame 3 | SPR12 |
| Stretcher frame 4 | SPR14 |
| Adaptor sleeve | H2306 |
| Mass | 1.98 kg |
