SKU: UKSP206HCO-SNR

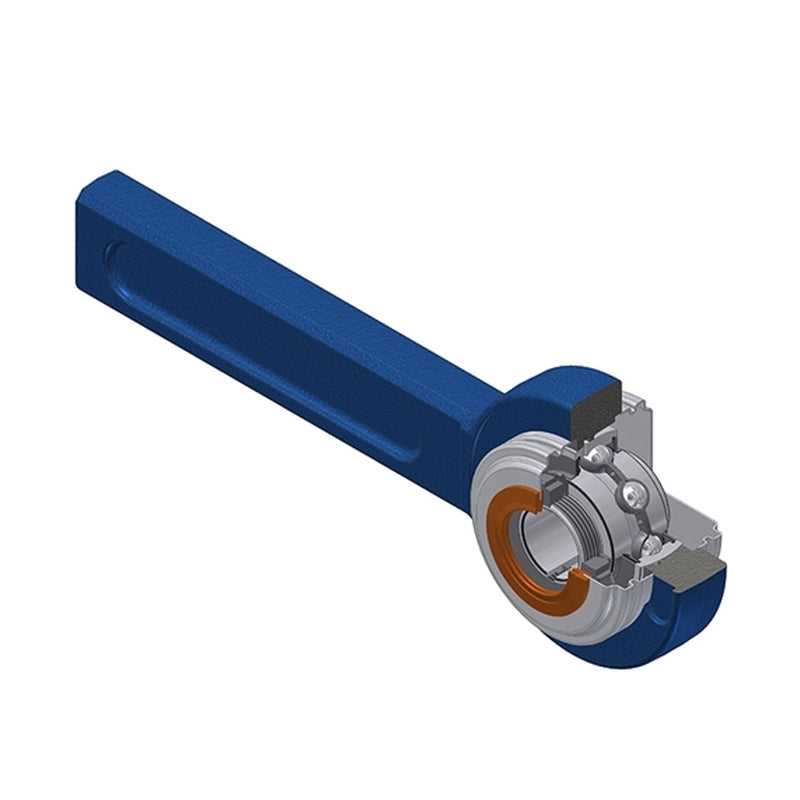

SNR UKSP206HCO Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Open Version - with Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days

SNR UKSP206HCO Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Open Version - with Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
Regular price CHF 124.00 ex VAT
Regular price Sale price CHF 124.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 109.71
4+ CHF 105.28
9+ CHF 103.06
19+ CHF 99.74
49+ CHF 97.52
99+ CHF 91.98
499+ CHF 77.57
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 25mm
A 21mm
B1 38mm
d1 45mm
H 98mm
H2 41mm
L 274mm
L1 225mm
Dz 70mm
Z 50.8mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Adaptor sleeve H2306
Mass 2.06 kg
