SKU: UKT206/HE2306

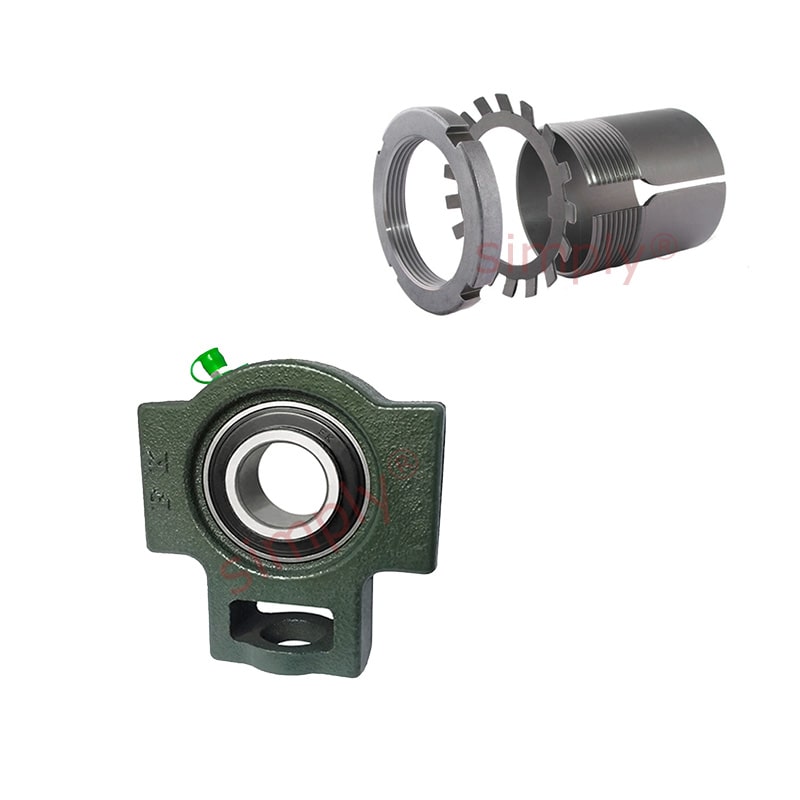

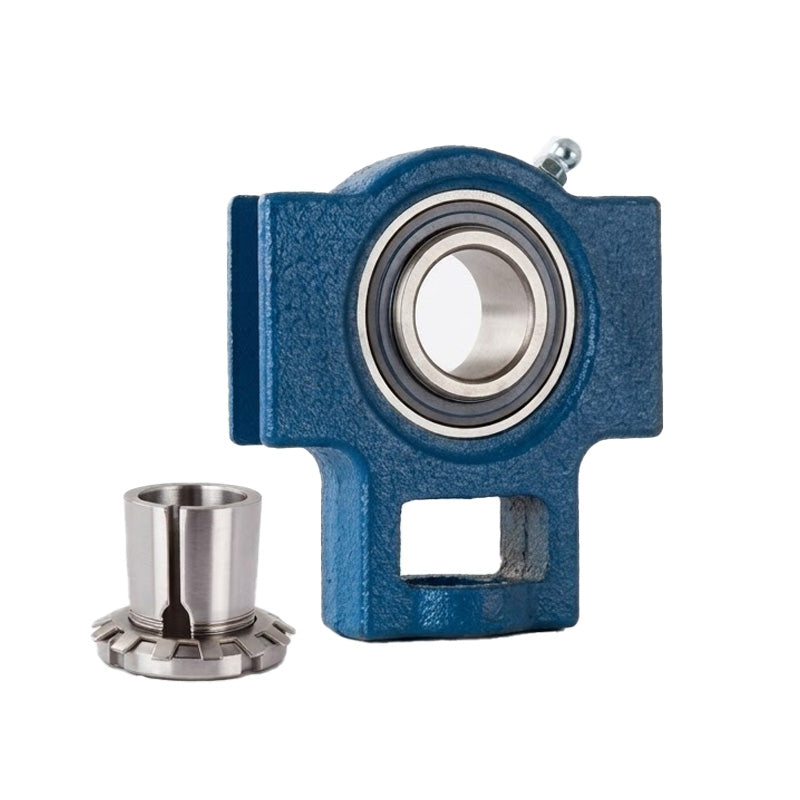

UKT206/HE2306 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1 inch Shaft
UKT206/HE2306 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 1 inch Shaft
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
In stock
Price Break
3+
CHF 28.79
4+
CHF 27.17
9+
CHF 26.85
19+
CHF 26.52
49+
CHF 26.20
99+
CHF 25.88
499+
CHF 24.26
999+
CHF 23.93
1999+
CHF 23.61
2999+
CHF 23.29
4999+
CHF 22.64
Description
Description

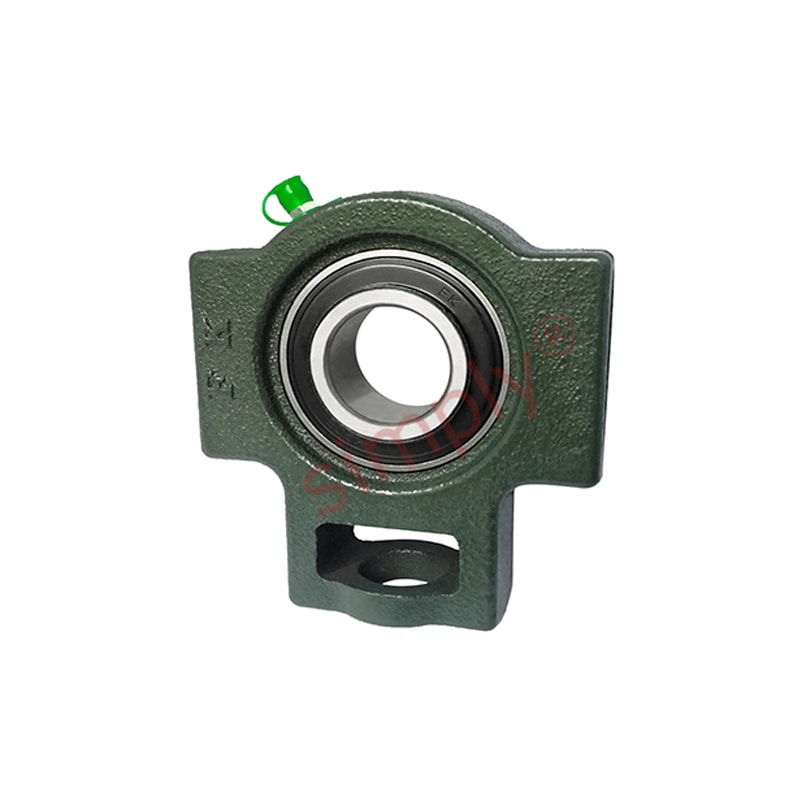

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UKT
Technical
Technical
| d | 1 inch |
|---|---|
| o | 5/8 inch |
| g | 25/64 inch |
| p | 2-7/32 inch |
| q | 1-29/64 inch |
| s | 55/64 inch |
| b | 2-1/4 inch |
| k | 15/32 inch |
| e | 3-1/2 inch |
| a | 4-1/64 inch |
| w | 4-29/64 inch |
| j | 1-29/64 inch |
| l | 1-3/32 inch |
| h | 2-3/4 inch |
| t | 2-3/32 inch |
| B1 | 1.496 inch |
| Bearing no | UK206;HE2306 |
| Housing no | T206 |
| Weight | 1.26 kg |
