SKU: UKT208/H2308

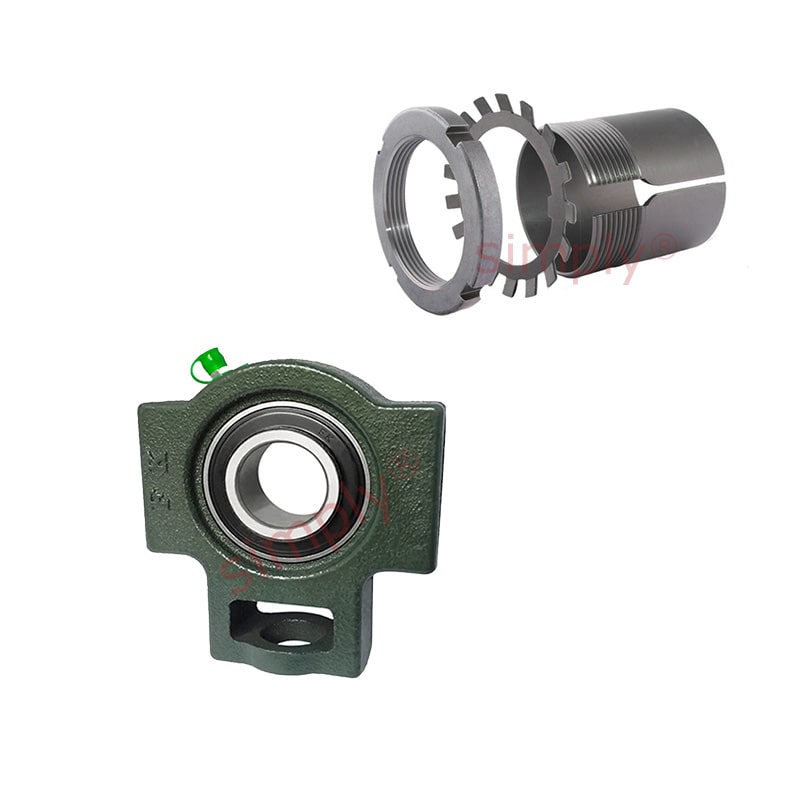

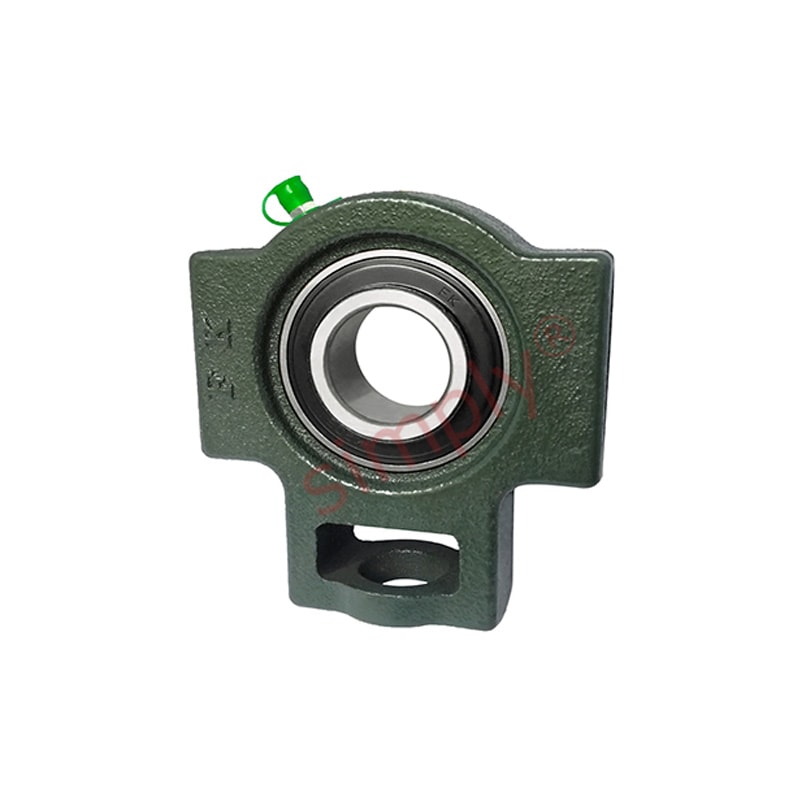

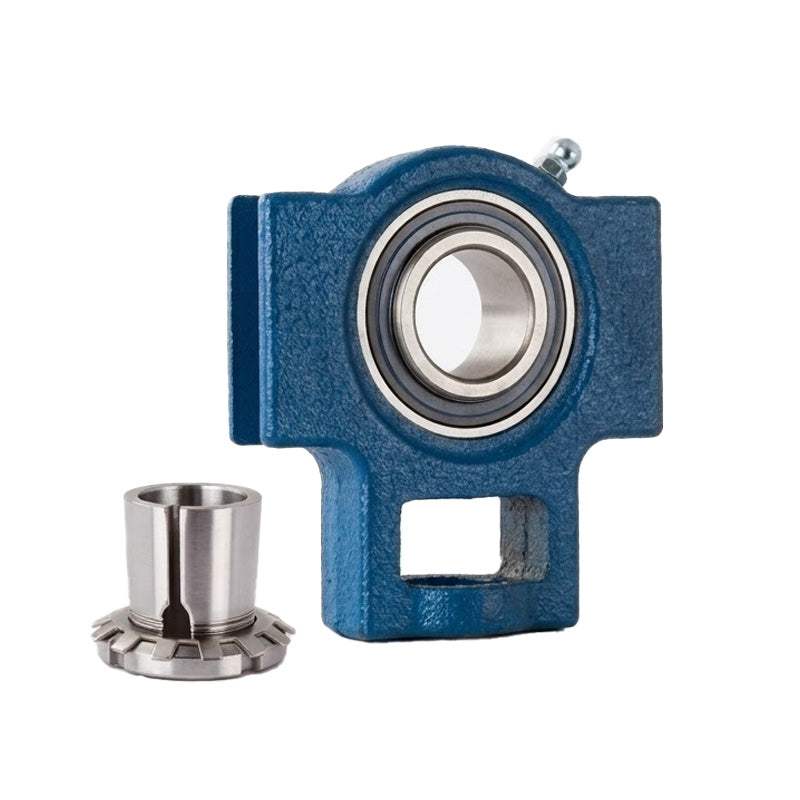

UKT208/H2308 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 35mm Shaft
UKT208/H2308 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 35mm Shaft
Regular price
CHF 59.00
ex VAT
Regular price
Sale price
CHF 59.00
ex VAT
In stock
Price Break
3+
CHF 46.49
4+
CHF 43.88
9+
CHF 43.36
19+
CHF 42.83
49+
CHF 42.31
99+
CHF 41.79
499+
CHF 39.18
999+
CHF 38.65
1999+
CHF 38.13
2999+
CHF 37.61
4999+
CHF 36.57
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UKT
Technical
Technical
| d | 35mm |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 114mm |
| w | 144mm |
| j | 49mm |
| l | 33mm |
| h | 89mm |
| t | 69mm |
| B1 | 46mm |
| Bearing no | UK208;H2308 |
| Housing no | T208 |
| Weight | 2.5 kg |
