SKU: UKT209D1/H2309X-NTN

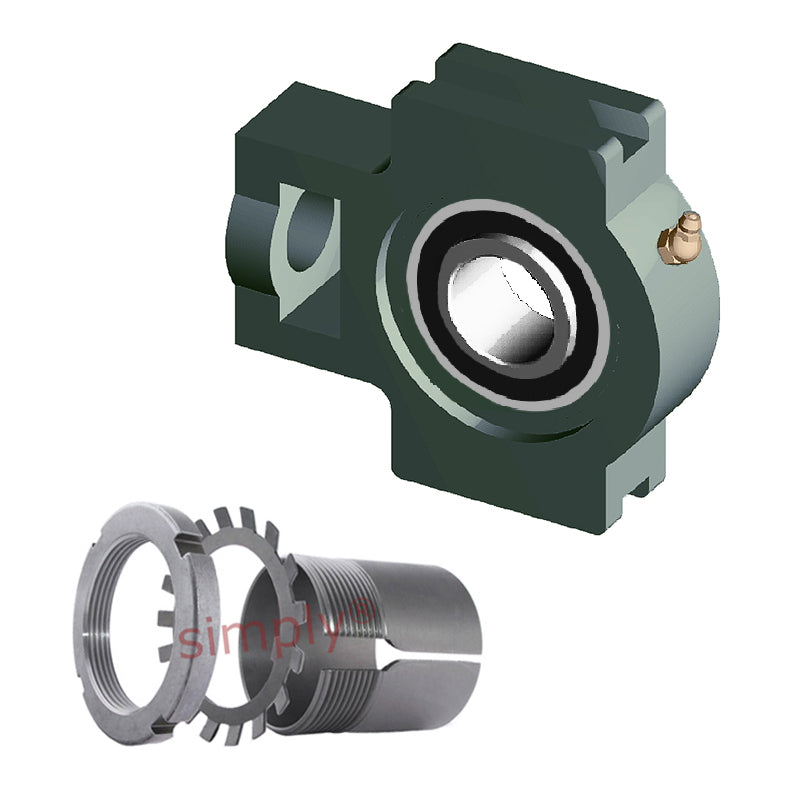

NTN UKT209D1/H2309X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
NTN UKT209D1/H2309X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
3+
CHF 76.75
4+
CHF 73.65
9+
CHF 72.10
19+
CHF 69.78
49+
CHF 68.23
99+
CHF 64.35
499+
CHF 54.27
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 18mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 83mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 117mm |
| L | 145mm |
| A<sub>2</sub> | 35mm |
| A | 49mm |
| r | 57mm |
| L<sub>1</sub> | 88mm |
| B<sub>1</sub> | 50mm |
| Mass | 2.5 kg |
