SKU: UKT210HCO-SNR

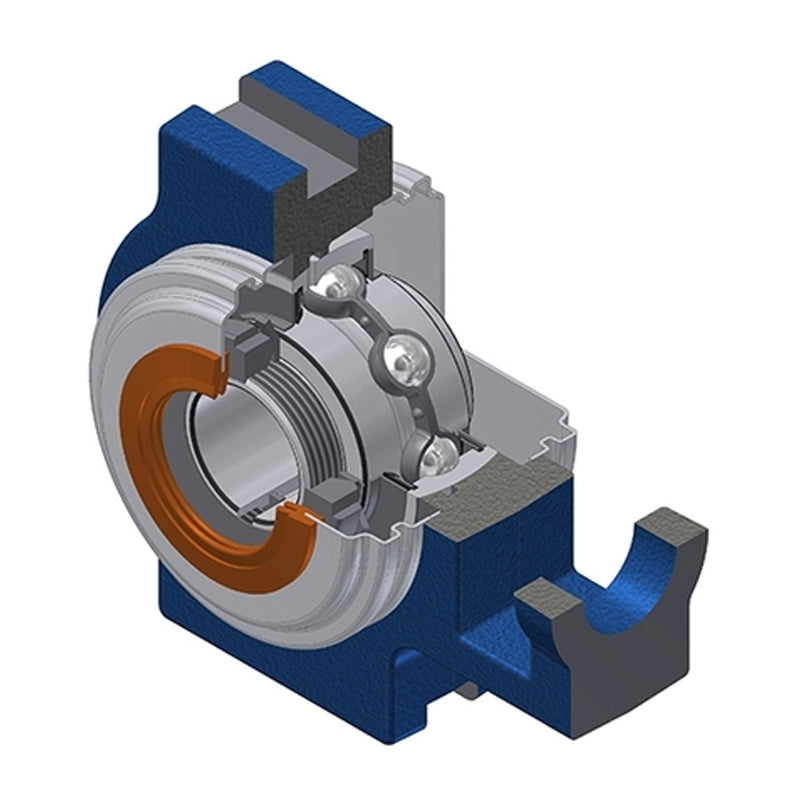

SNR UKT210HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Open Version - Allow 2-3 Days

SNR UKT210HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Open Version - Allow 2-3 Days
Regular price CHF 112.00 ex VAT
Regular price Sale price CHF 112.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 98.74
4+ CHF 94.75
9+ CHF 92.76
19+ CHF 89.77
49+ CHF 87.77
99+ CHF 82.78
499+ CHF 69.82
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 49mm
A1 16mm
A2 37mm
B1 55mm
d1 70mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
Dz 100mm
Z 74.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2310
Mass 2.752 kg
