SKU: UKT217/H2317

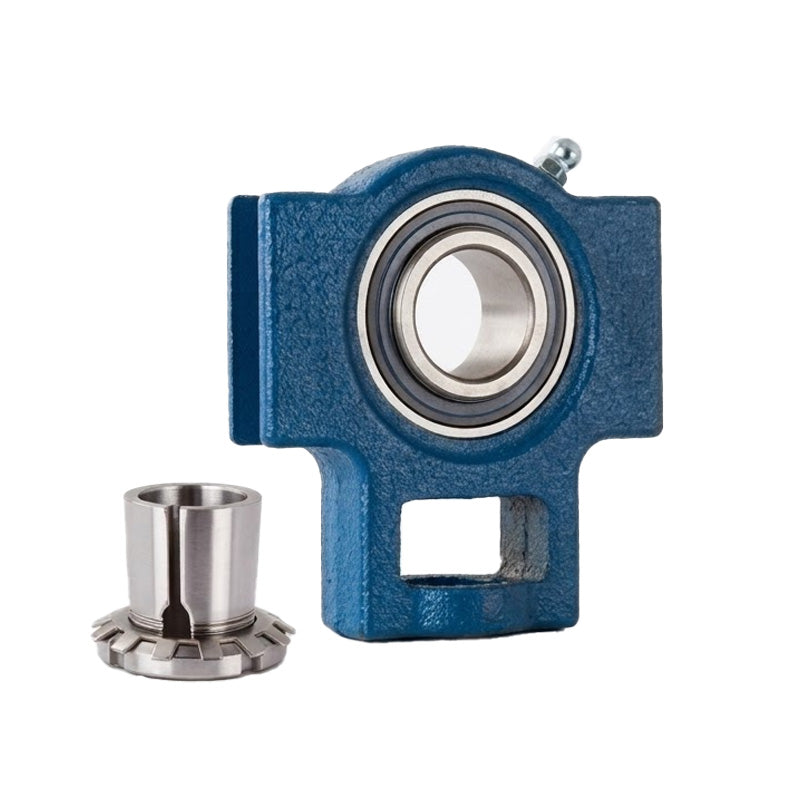

Budget UKT217/H2317 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 75mm Shaft
Budget UKT217/H2317 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 75mm Shaft
Regular price
CHF 318.28
ex VAT
Regular price
Sale price
CHF 318.28
ex VAT
In stock
Price Break
10+
CHF 283.27
19+
CHF 267.36
29+
CHF 264.17
39+
CHF 260.99
49+
CHF 257.81
74+
CHF 254.62
99+
CHF 238.71
199+
CHF 235.53
249+
CHF 232.34
499+
CHF 229.16
999+
CHF 222.80
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UKT
Technical
Technical
| d | 75mm |
|---|---|
| o | 38mm |
| g | 29mm |
| p | 124mm |
| q | 73mm |
| s | 48mm |
| b | 157mm |
| k | 30mm |
| e | 173mm |
| a | 198mm |
| w | 260mm |
| j | 73mm |
| l | 54mm |
| h | 162mm |
| t | 113.2mm |
| B1 | 82mm |
| Bearing no | UK217;H2317 |
| Housing no | T217 |
| Weight | 11.38 kg |
