SKU: UKT217/HA2317

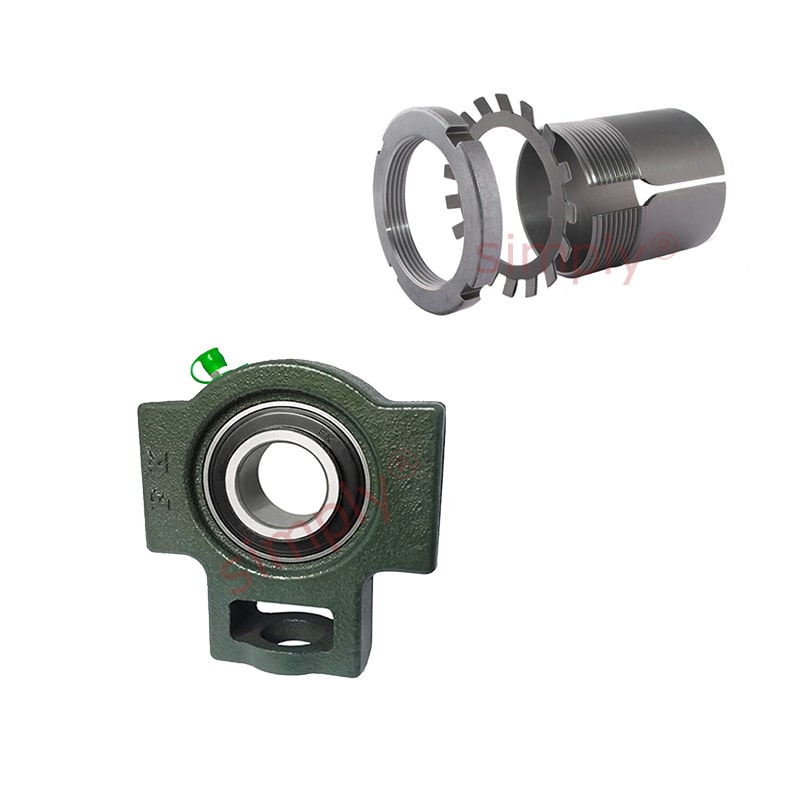

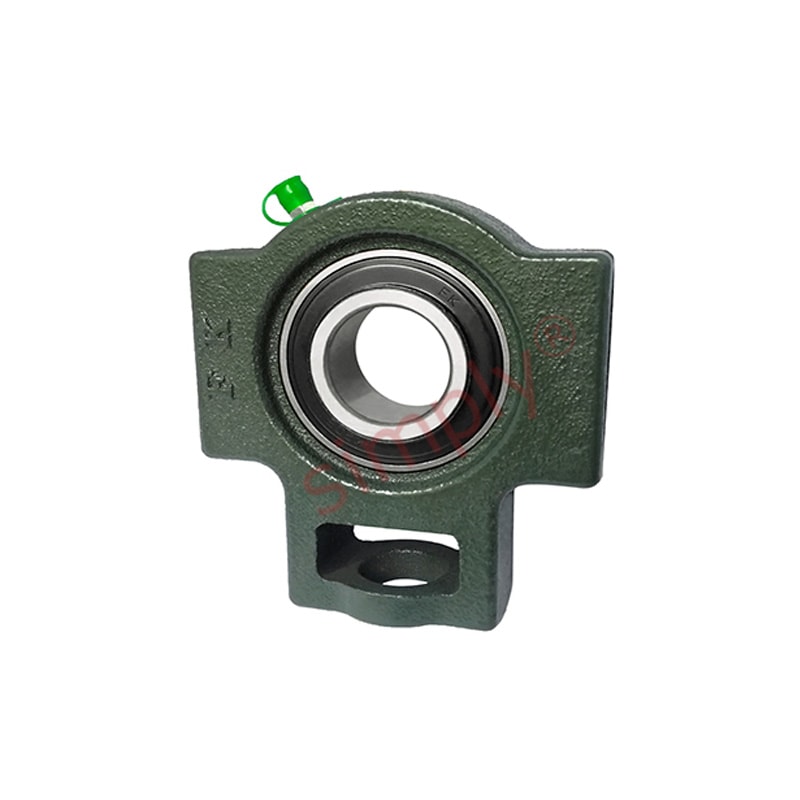

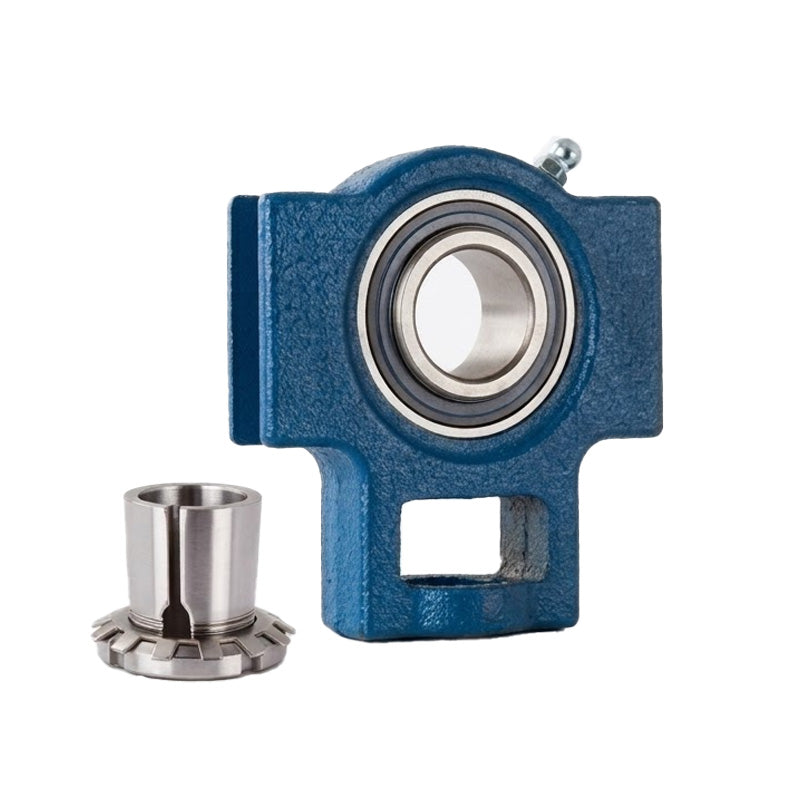

UKT217/HA2317 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft
UKT217/HA2317 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft
Regular price
CHF 336.00
ex VAT
Regular price
Sale price
CHF 336.00
ex VAT
In stock
Price Break
3+
CHF 267.14
4+
CHF 252.13
9+
CHF 249.13
19+
CHF 246.13
49+
CHF 243.12
99+
CHF 240.12
499+
CHF 225.12
999+
CHF 222.11
1999+
CHF 219.11
2999+
CHF 216.11
4999+
CHF 210.11
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UKT
Technical
Technical
| d | 2-15/16 inch |
|---|---|
| o | 1-1/2 inch |
| g | 1-9/64 inch |
| p | 4-7/8 inch |
| q | 2-7/8 inch |
| s | 1-57/64 inch |
| b | 6-3/16 inch |
| k | 1-3/16 inch |
| e | 6-13/16 inch |
| a | 7-51/64 inch |
| w | 10-15/64 inch |
| j | 2-7/8 inch |
| l | 2-1/8 inch |
| h | 6-3/8 inch |
| t | 4-29/64 inch |
| B1 | 3.288 inch |
| Bearing no | UK217;HA2317 |
| Housing no | T217 |
| Weight | 11.38 kg |
