SKU: UKT217/HE2317

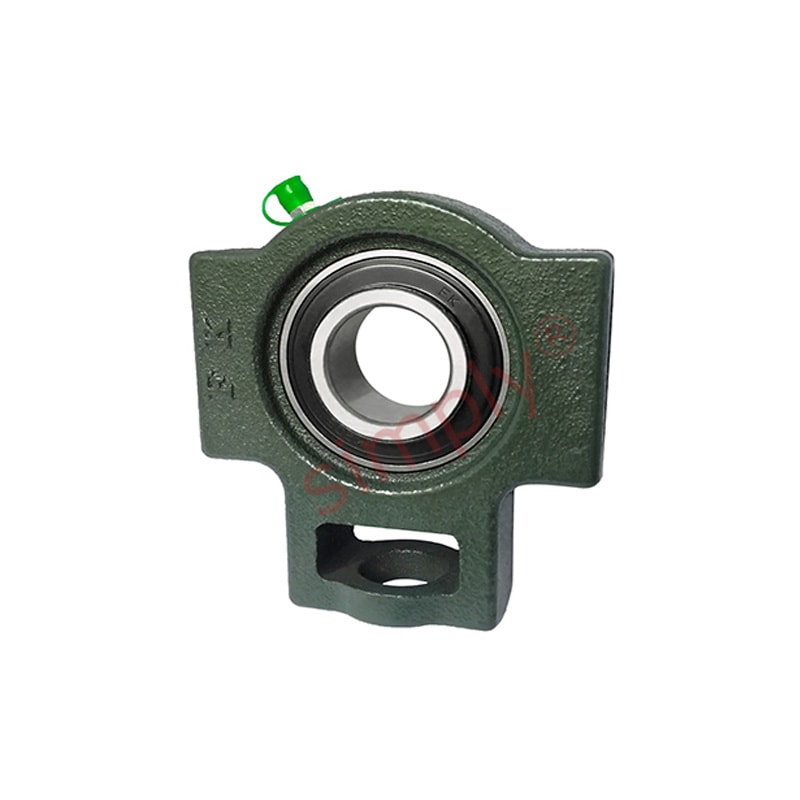

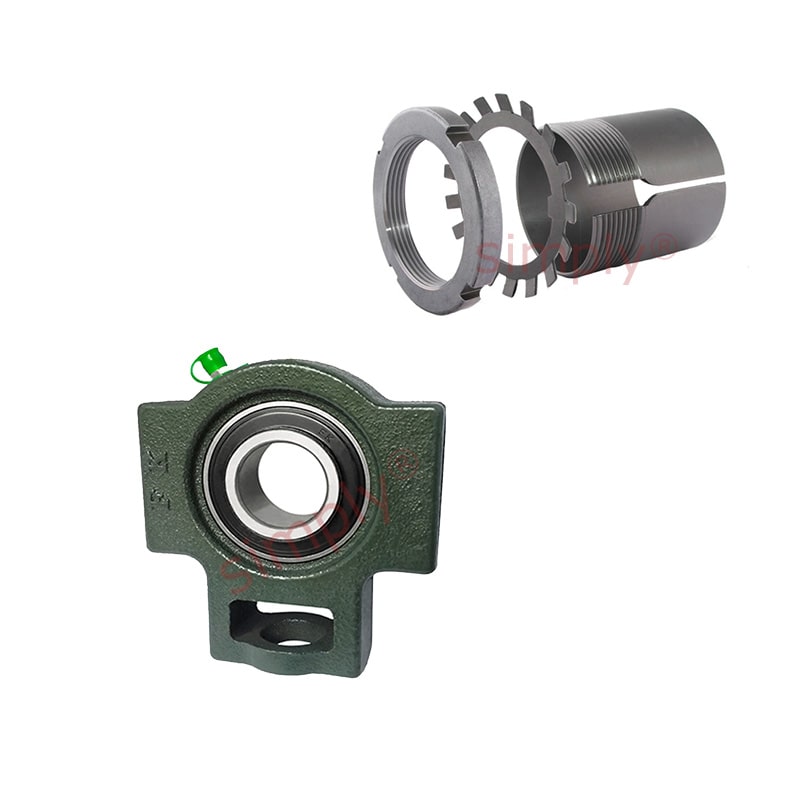

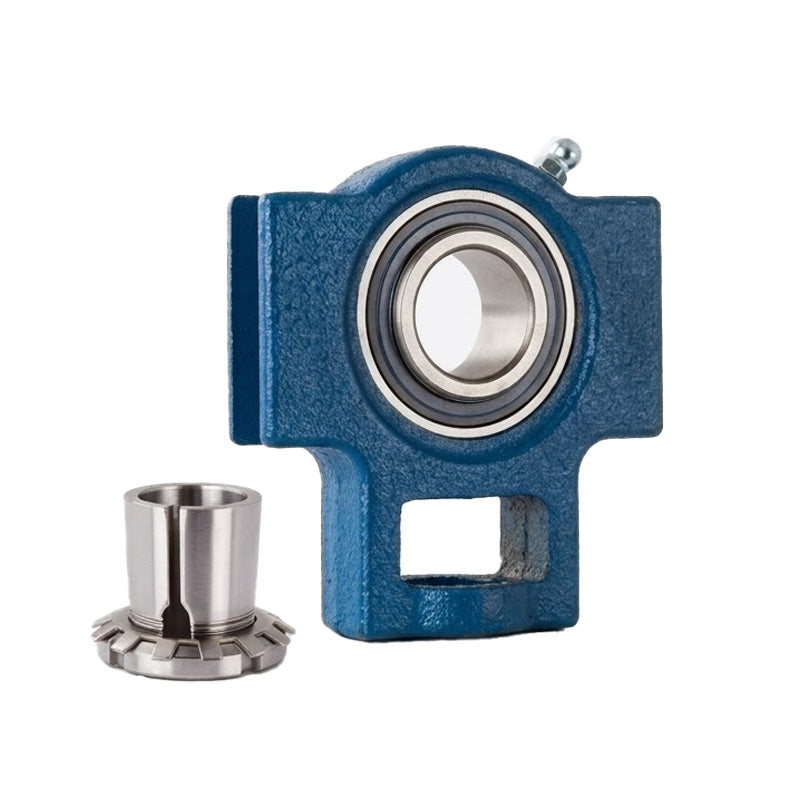

UKT217/HE2317 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 3 inch Shaft
UKT217/HE2317 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 3 inch Shaft
Regular price
CHF 412.00
ex VAT
Regular price
Sale price
CHF 412.00
ex VAT
In stock
Price Break
3+
CHF 327.66
4+
CHF 309.25
9+
CHF 305.57
19+
CHF 301.89
49+
CHF 298.21
99+
CHF 294.53
499+
CHF 276.12
999+
CHF 272.44
1999+
CHF 268.76
2999+
CHF 265.07
4999+
CHF 257.71
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UKT
Technical
Technical
| d | 3 inch |
|---|---|
| o | 1-1/2 inch |
| g | 1-9/64 inch |
| p | 4-7/8 inch |
| q | 2-7/8 inch |
| s | 1-57/64 inch |
| b | 6-3/16 inch |
| k | 1-3/16 inch |
| e | 6-13/16 inch |
| a | 7-51/64 inch |
| w | 10-15/64 inch |
| j | 2-7/8 inch |
| l | 2-1/8 inch |
| h | 6-3/8 inch |
| t | 4-29/64 inch |
| B1 | 3.288 inch |
| Bearing no | UK217;HE2317 |
| Housing no | T217 |
| Weight | 11.38 kg |
