SKU: UKT307D1/H2307X-NTN
NTN UKT307D1/H2307X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
NTN UKT307D1/H2307X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
3+
CHF 98.69
4+
CHF 94.71
9+
CHF 92.71
19+
CHF 89.72
49+
CHF 87.73
99+
CHF 82.74
499+
CHF 69.78
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description

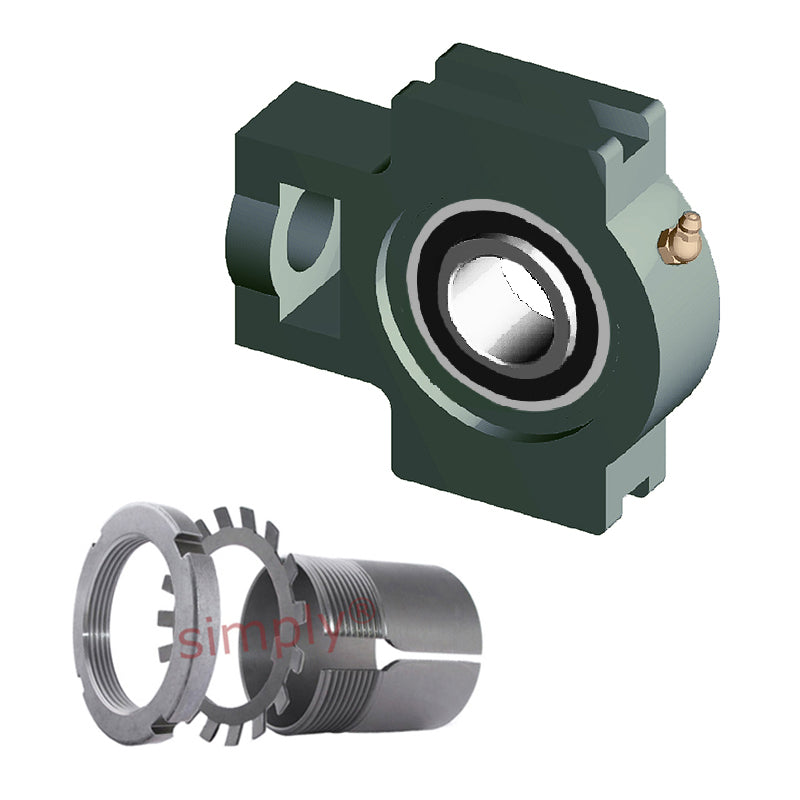

UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| N<sub>1</sub> | 20mm |
| L<sub>2</sub> | 17mm |
| H<sub>2</sub> | 75mm |
| N<sub>2</sub> | 45mm |
| N | 30mm |
| L<sub>3</sub> | 80mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 100mm |
| H | 111mm |
| L | 150mm |
| A<sub>2</sub> | 32mm |
| A | 45mm |
| r | 56mm |
| L<sub>1</sub> | 94mm |
| B<sub>1</sub> | 43mm |
| Mass | 2.4 kg |
