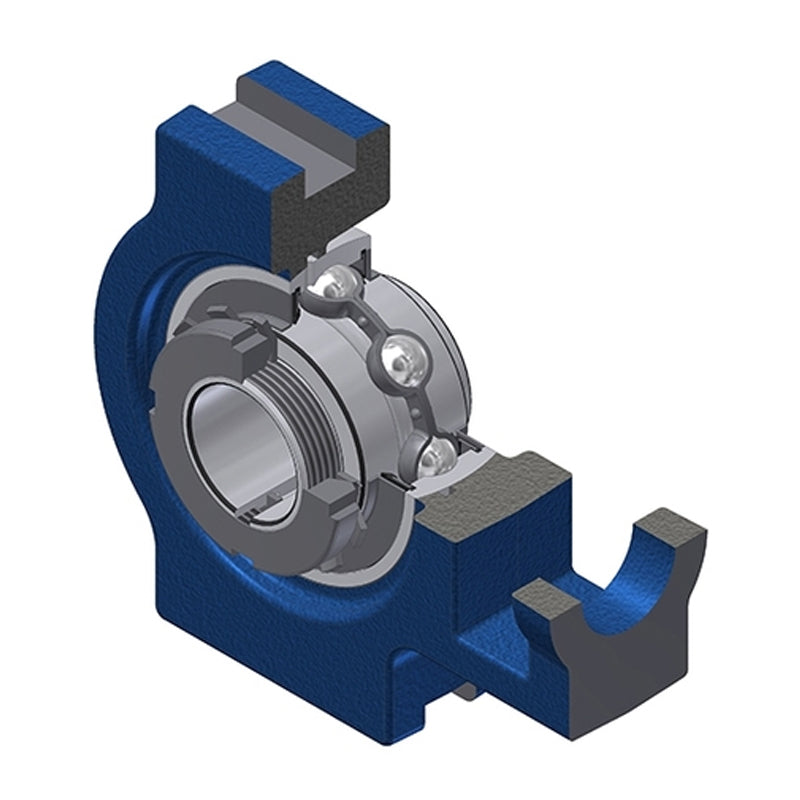

SNR UKT308H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
SNR UKT308H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
3+
CHF 109.67
4+
CHF 105.24
9+
CHF 103.03
19+
CHF 99.70
49+
CHF 97.49
99+
CHF 91.95
499+
CHF 77.55
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 50mm |
| A1 | 18mm |
| A2 | 34mm |
| B1 | 46mm |
| d1 | 58mm |
| H | 124mm |
| H1 | 112mm |
| H2 | 83mm |
| L | 162mm |
| L1 | 100mm |
| L2 | 19mm |
| L3 | 89mm |
| N | 32mm |
| N1 | 22mm |
| N2 | 50mm |
| s1 | 27.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2308 |
| Mass | 3.02 kg |
