SKU: UKT311H-SNR

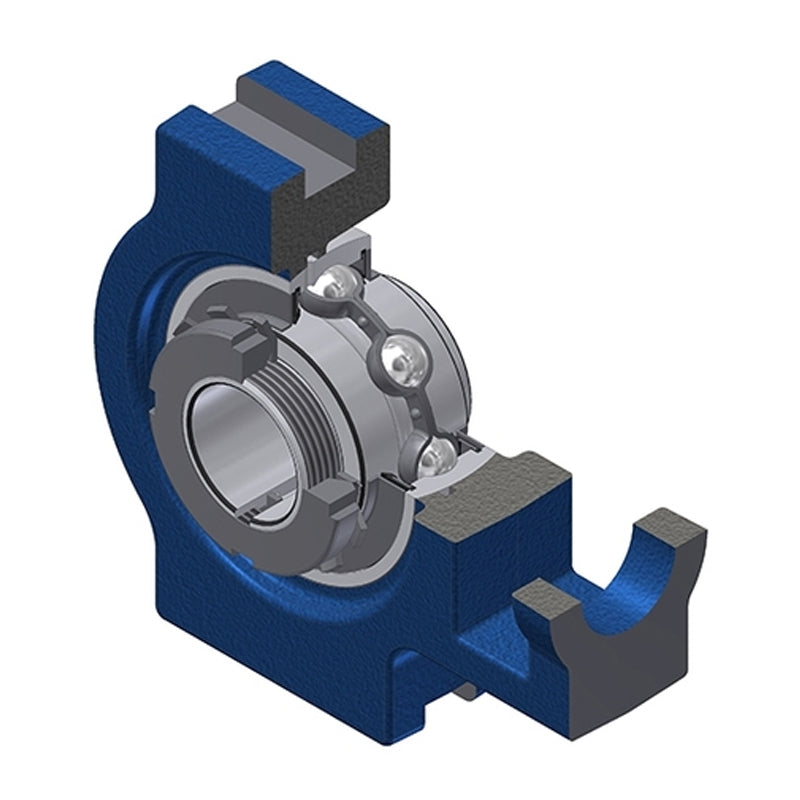

SNR UKT311H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
SNR UKT311H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
CHF 223.00
ex VAT
Regular price
Sale price
CHF 223.00
ex VAT
In stock
Price Break
3+
CHF 197.41
4+
CHF 189.43
9+
CHF 185.44
19+
CHF 179.46
49+
CHF 175.47
99+
CHF 165.50
499+
CHF 139.58
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 66mm |
| A1 | 22mm |
| A2 | 44mm |
| B1 | 59mm |
| d1 | 75mm |
| H | 163mm |
| H1 | 150mm |
| H2 | 105mm |
| L | 207mm |
| L1 | 127mm |
| L2 | 23mm |
| L3 | 115mm |
| N | 39mm |
| N1 | 29mm |
| N2 | 66mm |
| s1 | 34mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2311 |
| Mass | 6.3 kg |
