SKU: US210-30G2-SNR

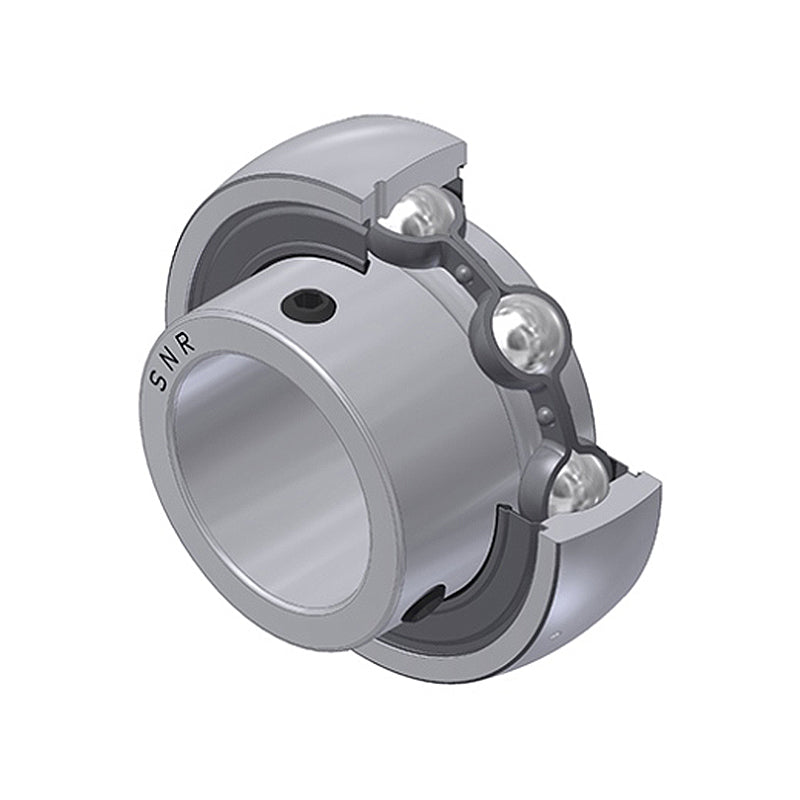

SNR US210-30G2 Imperial Flatback Spherical Outer Bearing Insert 1-7/8 inch Bore 90mm Outside Diameter with Grub Screws - Allow 2-3 Days
Equivalent to: SB210-30
In stock
Price Break
Description
SNR US Flatback Spherical Outer Bearing Insert with Grub Screws: This bearing insert is crafted as a standard version, offering dependable performance across various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It incorporates a zinc-coated sheet steel retainer with a vulcanized seal, where the axially preloaded seal lip is made from NBR and positioned behind a protective edge. Designed for normal environmental conditions, this insert supports medium to high rotation speeds, ensuring consistent performance in demanding settings.
Benefits: High-quality brand, high-performance, precision-engineered
Equivalent: SB210-30
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 5/16-24UNF
- Inside Diameter:
- 47.625mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 90mm
- Width:
- 43.5mm
- Style:
- US
Technical
| d | 1-7/8 inch |
|---|---|
| d | 47.625mm |
| D | 90mm |
| C | 20mm |
| B | 43.5mm |
| S | 10.9mm |
| m | 9mm |
| C1 | 6.5mm |
| r min | 1.1mm |
| G | 5/16-24UNF |
| Wrench Size | 5/32 inch |
| Set screw torque | 8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 35.1kN |
| Static load rating C0 | 23.2kN |
| Weight | 0.8kg |
