SKU: USF207-22-SNR

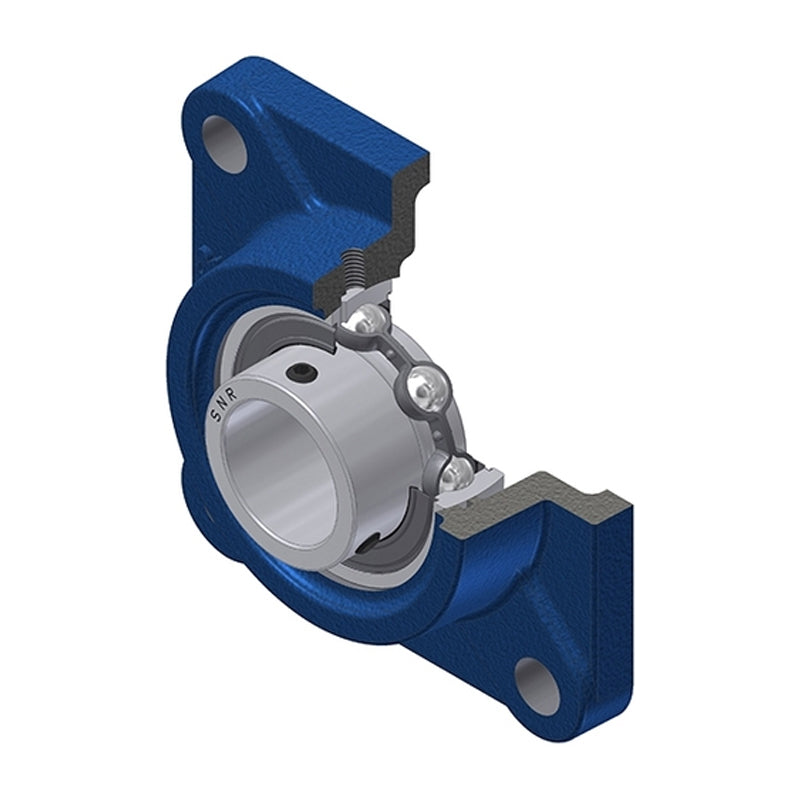

SNR USF207-22 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
SNR USF207-22 Imperial Four Bolt Square Cast Iron Flange Housing with 1-3/8 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 30.69
4+
CHF 29.45
9+
CHF 28.83
19+
CHF 27.90
49+
CHF 27.28
99+
CHF 25.73
499+
CHF 21.70
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- USF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-3/8 inch |
| A | 34mm |
| A1 | 15mm |
| A2 | 42.5mm |
| B | 32mm |
| e | 19mm |
| J | 92mm |
| L | 117mm |
| N | 14mm |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.41 kg |
