SKU: USF210-SNR

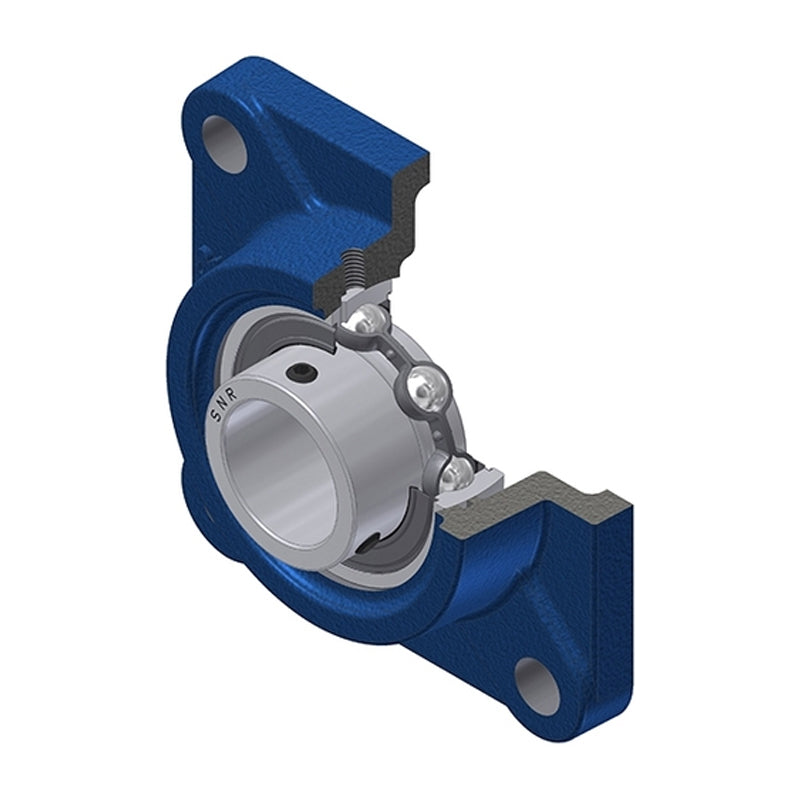

SNR USF210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
SNR USF210 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
3+
CHF 39.46
4+
CHF 37.25
9+
CHF 36.80
19+
CHF 36.36
49+
CHF 35.91
99+
CHF 35.47
499+
CHF 33.25
999+
CHF 32.81
1999+
CHF 32.37
2999+
CHF 31.92
4999+
CHF 31.04
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 16mm |
| A2 | 54.6mm |
| B | 43.5mm |
| e | 22mm |
| J | 111mm |
| L | 143mm |
| N | 16mm |
| S | 10.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.46 kg |
