SKU: USF212-39-SNR

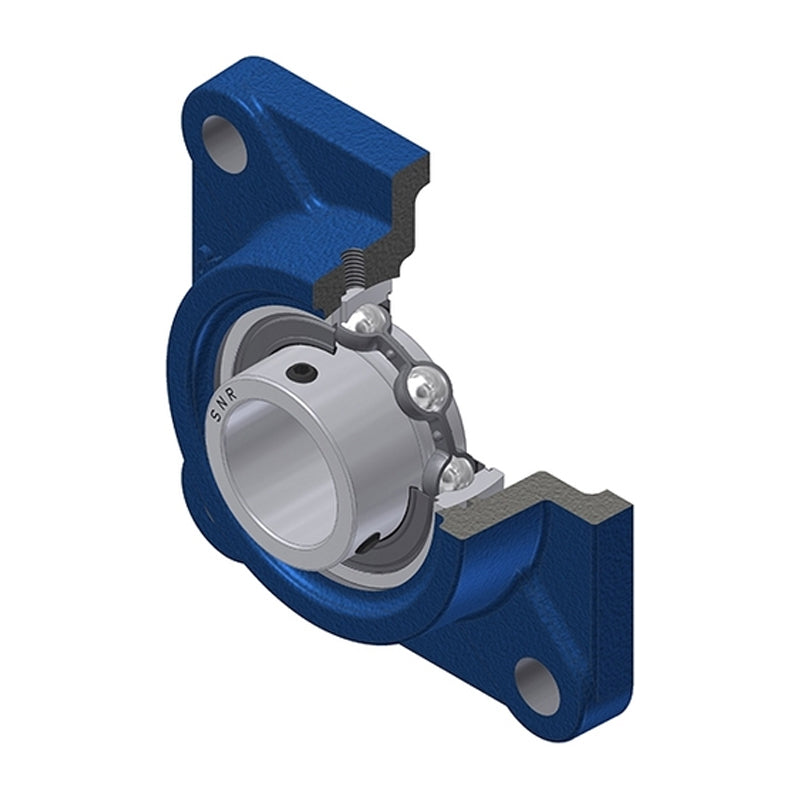

SNR USF212-39 Imperial Four Bolt Square Cast Iron Flange Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
SNR USF212-39 Imperial Four Bolt Square Cast Iron Flange Housing with 2-7/16 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
3+
CHF 76.81
4+
CHF 73.71
9+
CHF 72.16
19+
CHF 69.83
49+
CHF 68.28
99+
CHF 64.40
499+
CHF 54.31
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- USF
- Bolt Hole Centres:
- 143mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-7/16 inch |
| A | 48mm |
| A1 | 18mm |
| A2 | 67.8mm |
| B | 53.7mm |
| e | 29mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| S | 14.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 4.05 kg |
