SKU: USFA207N-SNR

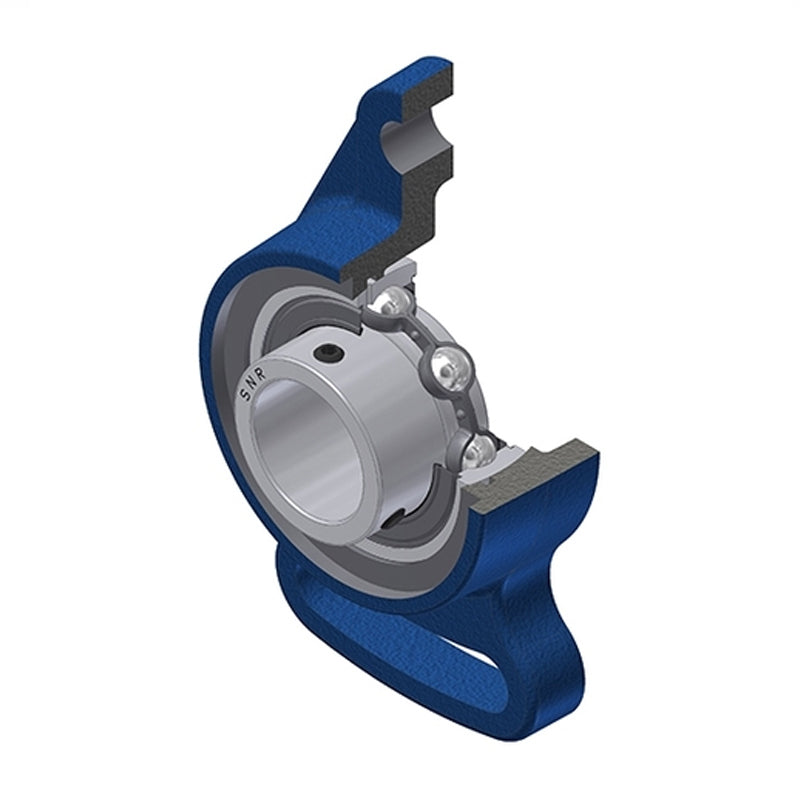

SNR USFA207N Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days

SNR USFA207N Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
Regular price CHF 62.00 ex VAT
Regular price Sale price CHF 62.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 54.86
4+ CHF 52.64
9+ CHF 51.53
19+ CHF 49.87
49+ CHF 48.76
99+ CHF 45.99
499+ CHF 38.79
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 16mm
A2 42.5mm
B 32mm
e 19mm
H 161mm
J 130mm
J1 66mm
L 90mm
L1 82mm
N 15mm
S 8.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.22 kg
