SKU: USFCE201-SNR

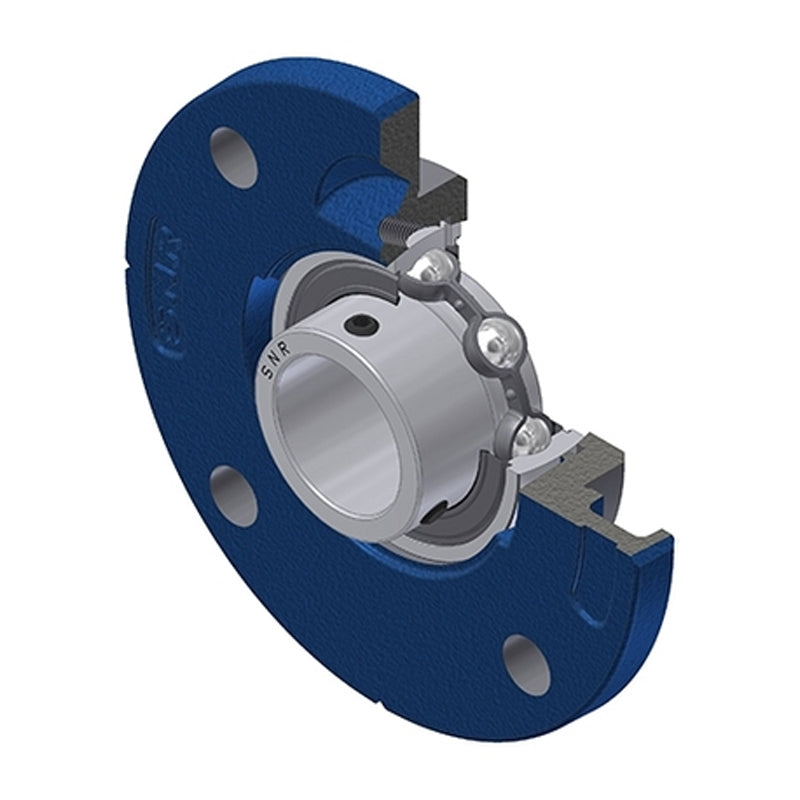

SNR USFCE201 Metric Four Bolt Cast Iron Round Flanged Housing with 12mm Insert - Allow 2-3 Days
SNR USFCE201 Metric Four Bolt Cast Iron Round Flanged Housing with 12mm Insert - Allow 2-3 Days
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
3+
CHF 21.94
4+
CHF 21.05
9+
CHF 20.61
19+
CHF 19.94
49+
CHF 19.50
99+
CHF 18.39
499+
CHF 15.51
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
USFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- USFCE
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| A | 18mm |
| A1 | 8mm |
| A2 | 14mm |
| A3 | 2mm |
| B | 22mm |
| e | -2mm |
| H3 | 62mm |
| J | 78mm |
| L | 100mm |
| N | 9mm |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.52 kg |
