SKU: USFD202M6-SNR

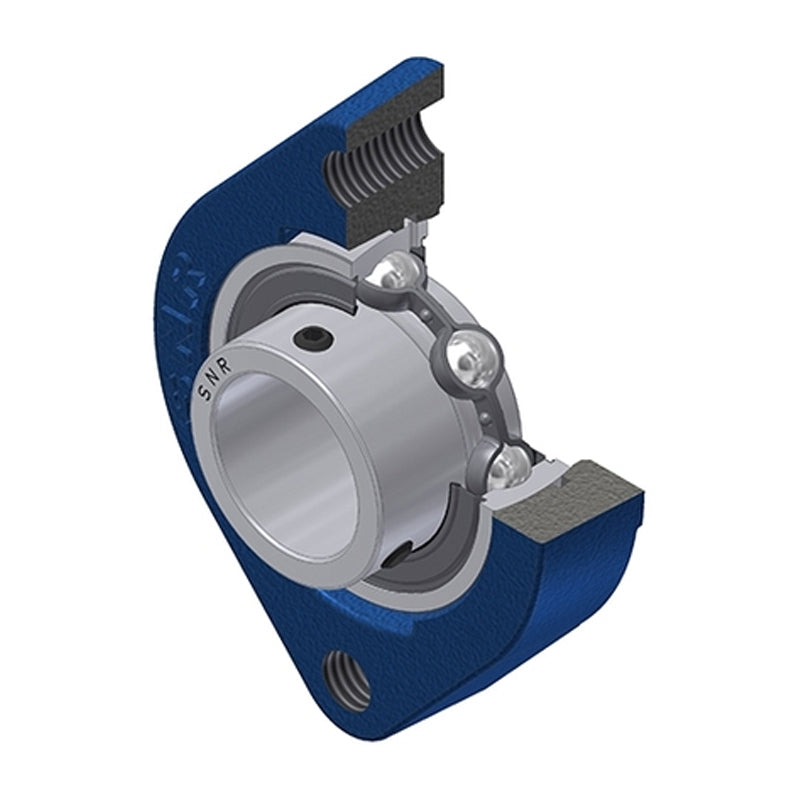

SNR USFD202M6 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
SNR USFD202M6 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
3+
CHF 19.74
4+
CHF 18.94
9+
CHF 18.54
19+
CHF 17.95
49+
CHF 17.55
99+
CHF 16.55
499+
CHF 13.96
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
USFD200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- USFD
- Bolt Hole Centres:
- 24.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 15mm |
| A2 | 24.4mm |
| B | 22mm |
| e | 8.4mm |
| H | 81mm |
| J | 63.5mm |
| L | 58.7mm |
| N1 | M6 |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.28 kg |
