SNR USFEE210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
SNR USFEE210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
3+
CHF 39.46
4+
CHF 37.25
9+
CHF 36.80
19+
CHF 36.36
49+
CHF 35.91
99+
CHF 35.47
499+
CHF 33.25
999+
CHF 32.81
1999+
CHF 32.37
2999+
CHF 31.92
4999+
CHF 31.04
Share this product
Description
Description

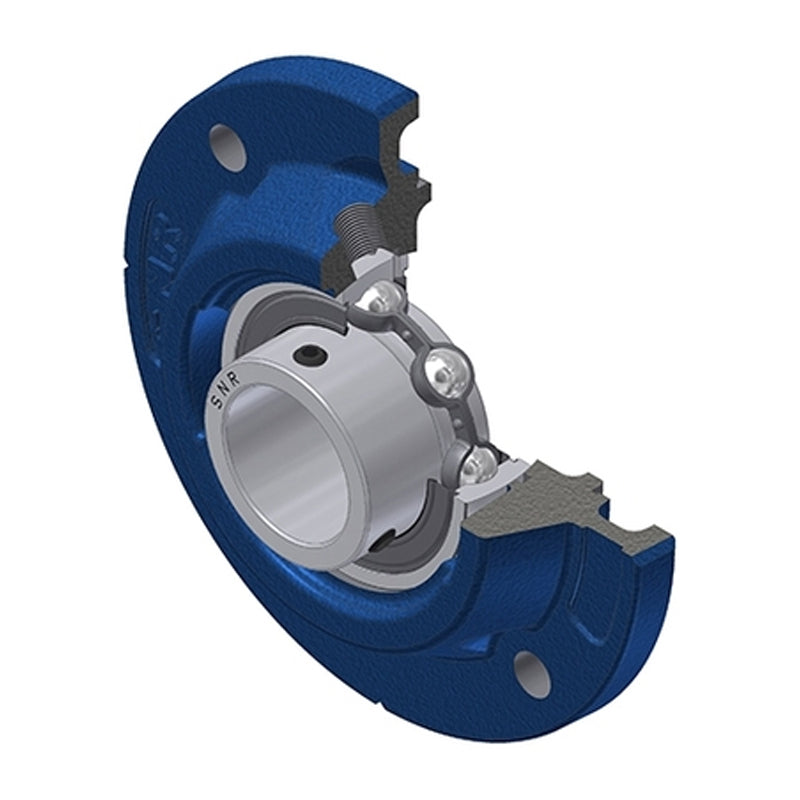

USFEE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USFEE
- Pitch Circle Diameter:
- 136mm
Technical
Technical

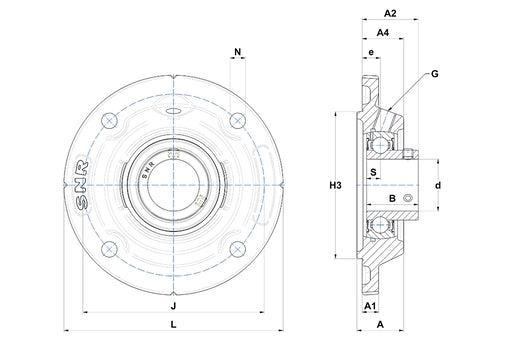

| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 32.5mm |
| A1 | 13mm |
| A2 | 45.1mm |
| A4 | 28.5mm |
| B | 43.5mm |
| e | 12.5mm |
| H3 | 115mm |
| J | 136mm |
| L | 165mm |
| N | 14mm |
| S | 10.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.46 kg |
