SKU: USFL203-SNR

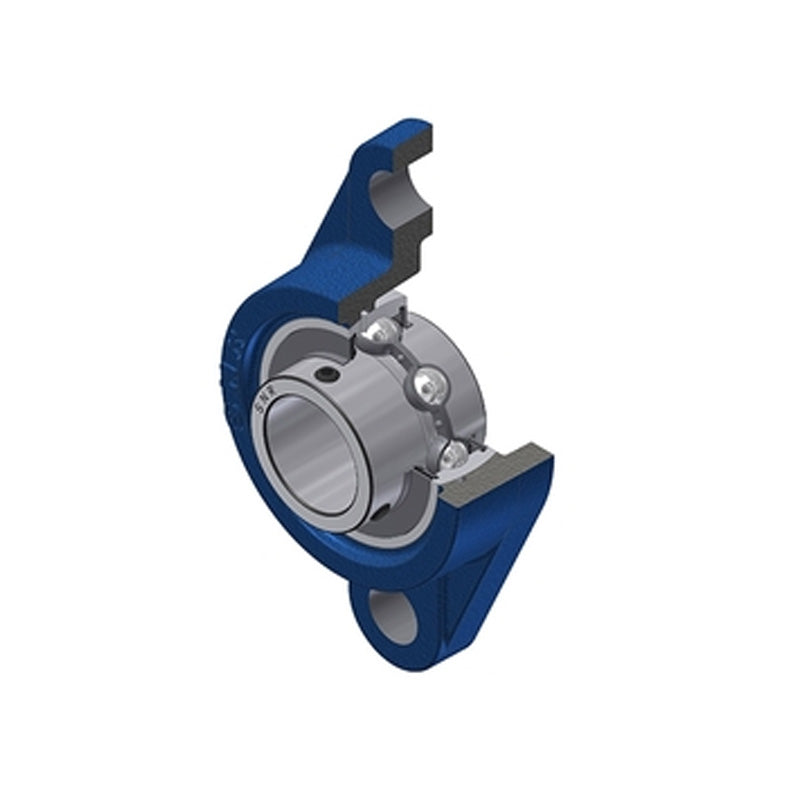

SNR USFL203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
SNR USFL203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
3+
CHF 17.54
4+
CHF 16.55
9+
CHF 16.36
19+
CHF 16.16
49+
CHF 15.96
99+
CHF 15.77
499+
CHF 14.78
999+
CHF 14.58
1999+
CHF 14.39
2999+
CHF 14.19
4999+
CHF 13.79
Share this product
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- USFL
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 17mm |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 31mm |
| B | 22mm |
| e | 15mm |
| H | 99mm |
| J | 76.5mm |
| L | 57mm |
| N | 12mm |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.36 kg |
