SKU: USFL205-SNR

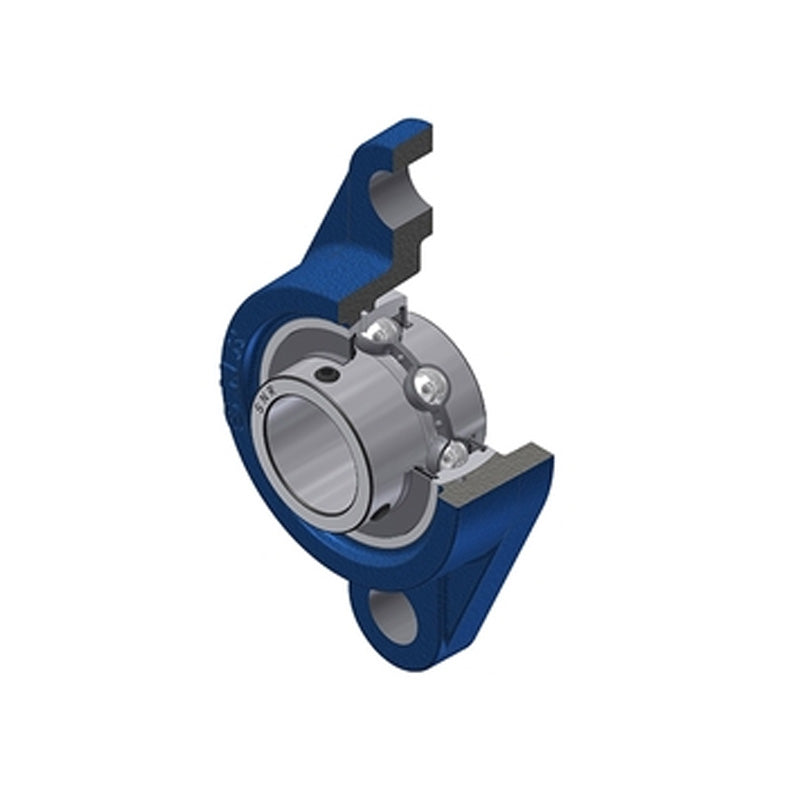

SNR USFL205 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert
SNR USFL205 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
3+
CHF 19.74
4+
CHF 18.63
9+
CHF 18.41
19+
CHF 18.18
49+
CHF 17.96
99+
CHF 17.74
499+
CHF 16.63
999+
CHF 16.41
1999+
CHF 16.19
2999+
CHF 15.97
4999+
CHF 15.52
Share this product
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- USFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 13mm |
| A2 | 35.5mm |
| B | 27mm |
| e | 16mm |
| H | 130mm |
| J | 99mm |
| L | 68mm |
| N | 16mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.58 kg |
