SKU: USP211-32-SNR

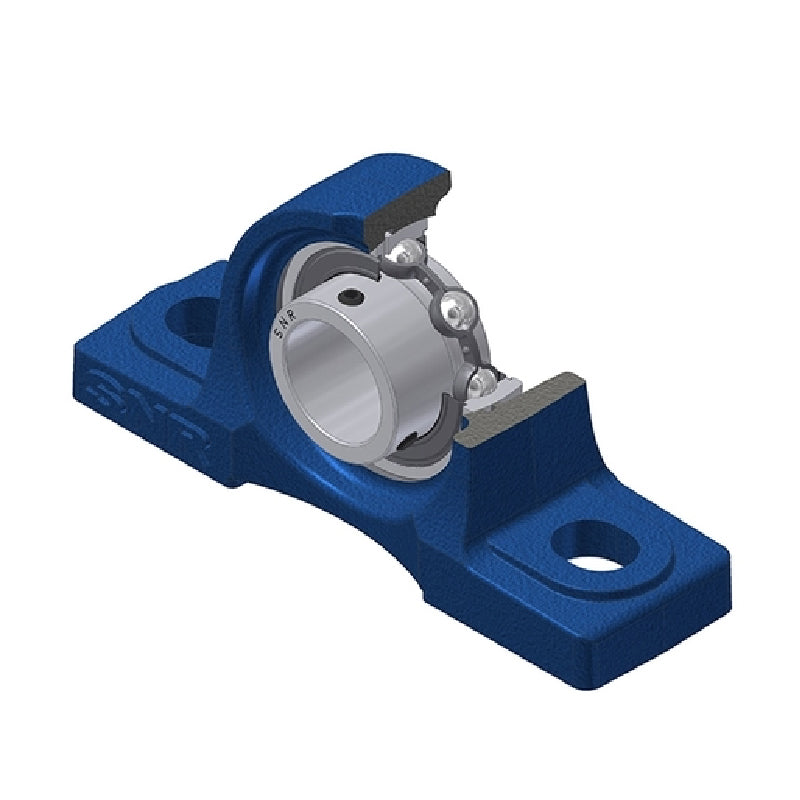

SNR USP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert - Allow 2-3 Days

SNR USP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert - Allow 2-3 Days
Regular price CHF 75.00 ex VAT
Regular price Sale price CHF 75.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 65.81
4+ CHF 63.15
9+ CHF 61.82
19+ CHF 59.82
49+ CHF 58.49
99+ CHF 55.17
499+ CHF 46.53
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 2 inch
A 60mm
A1 40mm
B 45.3mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 11.8mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 3.7 kg
