SKU: USPA202-SNR

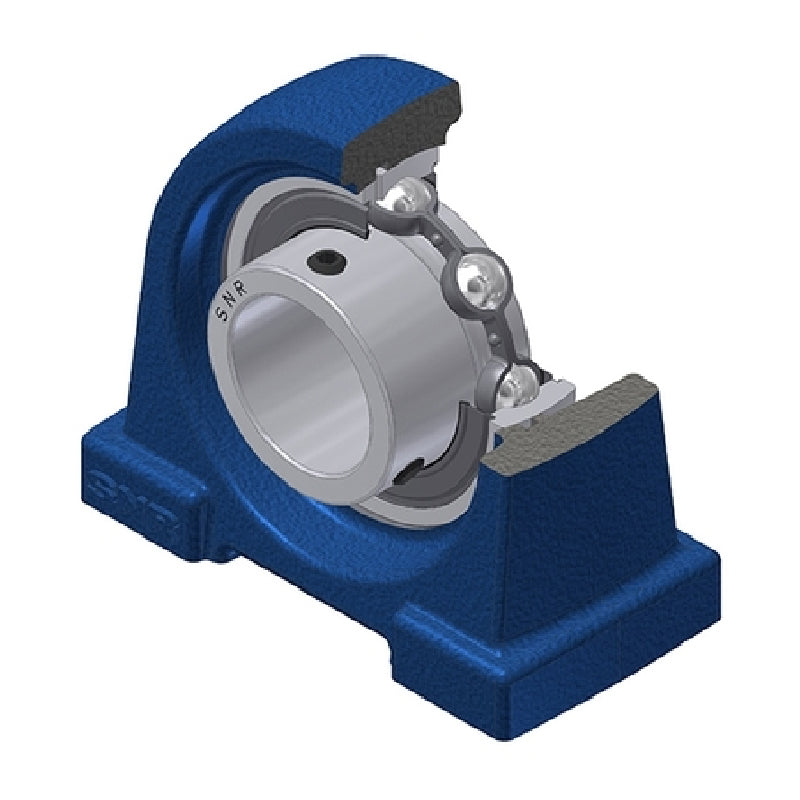

SNR USPA202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 15mm Bore Insert - Allow 2-3 Days
SNR USPA202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 15mm Bore Insert - Allow 2-3 Days
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
3+
CHF 26.31
4+
CHF 25.25
9+
CHF 24.72
19+
CHF 23.92
49+
CHF 23.39
99+
CHF 22.06
499+
CHF 18.61
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
USPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- USPA
- Bolt Hole Centres:
- 48mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 36mm |
| A1 | 19mm |
| B | 22mm |
| E | 9mm |
| H | 30.2mm |
| H1 | 10mm |
| H2 | 57mm |
| J | 48mm |
| L | 70mm |
| L1 | 20mm |
| N | M8 |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.38 kg |
