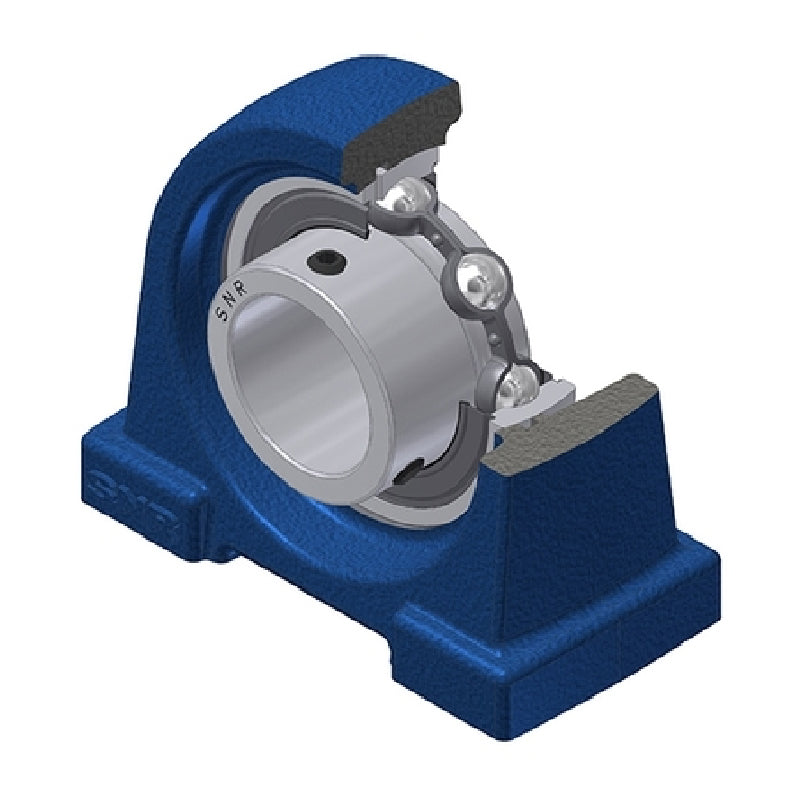

SNR USPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert - Allow 2-3 Days
SNR USPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert - Allow 2-3 Days
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
3+
CHF 43.86
4+
CHF 42.09
9+
CHF 41.20
19+
CHF 39.87
49+
CHF 38.98
99+
CHF 36.77
499+
CHF 31.01
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
USPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USPA
- Bolt Hole Centres:
- 80mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 48mm |
| A1 | 27mm |
| B | 32mm |
| E | 20mm |
| H | 47.6mm |
| H1 | 13mm |
| H2 | 95mm |
| J | 80mm |
| L | 110mm |
| L1 | 30mm |
| N | M14 |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.42 kg |
