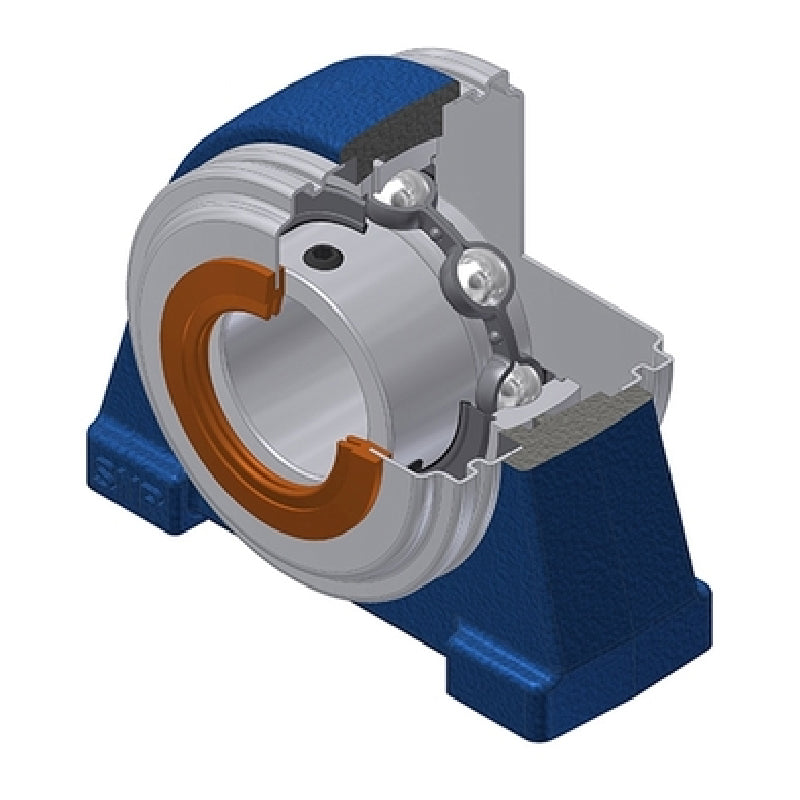

• SNR USPAE204CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: USPAE204CC-SNR

SNR USPAE204CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USPAE204CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
CHF 87.00 ex VAT
CHF 87.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 76.75
4+ CHF 73.65
9+ CHF 72.10
19+ CHF 69.78
49+ CHF 68.23
99+ CHF 64.35
499+ CHF 54.27
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
USPAE
Bolt Hole Centres:
50.8mm
Technical

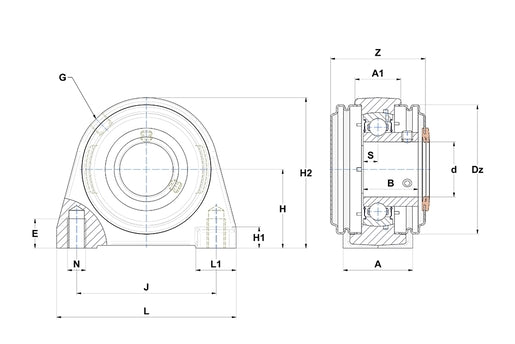

--- Dimensions
Shaft diameter 20mm
A 32mm
A1 19mm
B 25mm
E 10mm
H 33.3mm
H1 9mm
H2 64mm
J 50.8mm
L 65mm
L1 18mm
N M8
S 7mm
Dz 54mm
Z 44.5mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.49 kg
