SKU: USPE207N-SNR

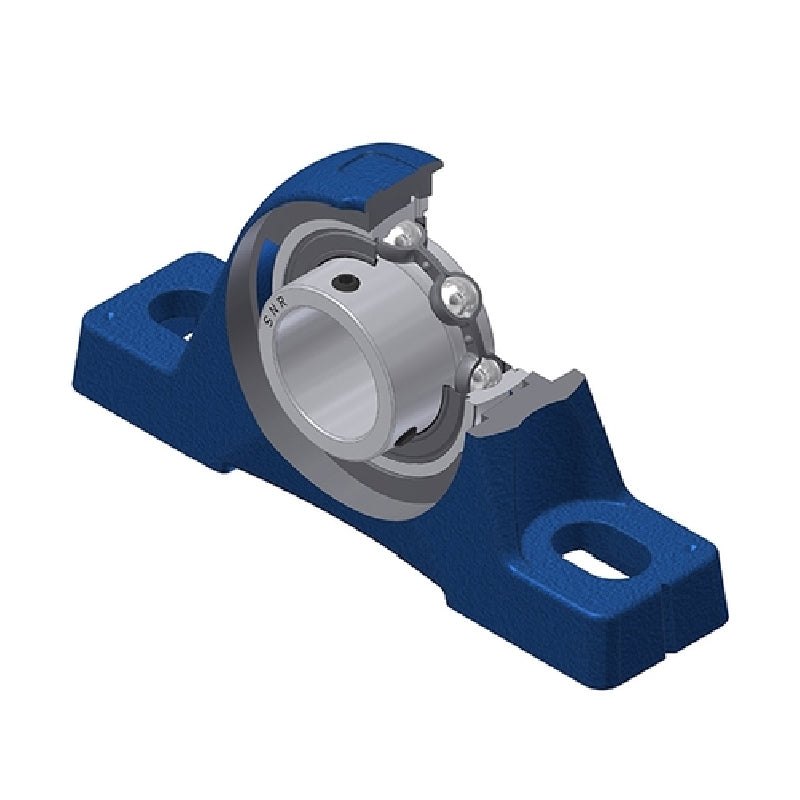

SNR USPE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days

SNR USPE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price CHF 40.00 ex VAT
Regular price Sale price CHF 40.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 35.11
4+ CHF 33.69
9+ CHF 32.98
19+ CHF 31.91
49+ CHF 31.20
99+ CHF 29.43
499+ CHF 24.82
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 32mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 8.5mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.42 kg
