SKU: USPE209-SNR

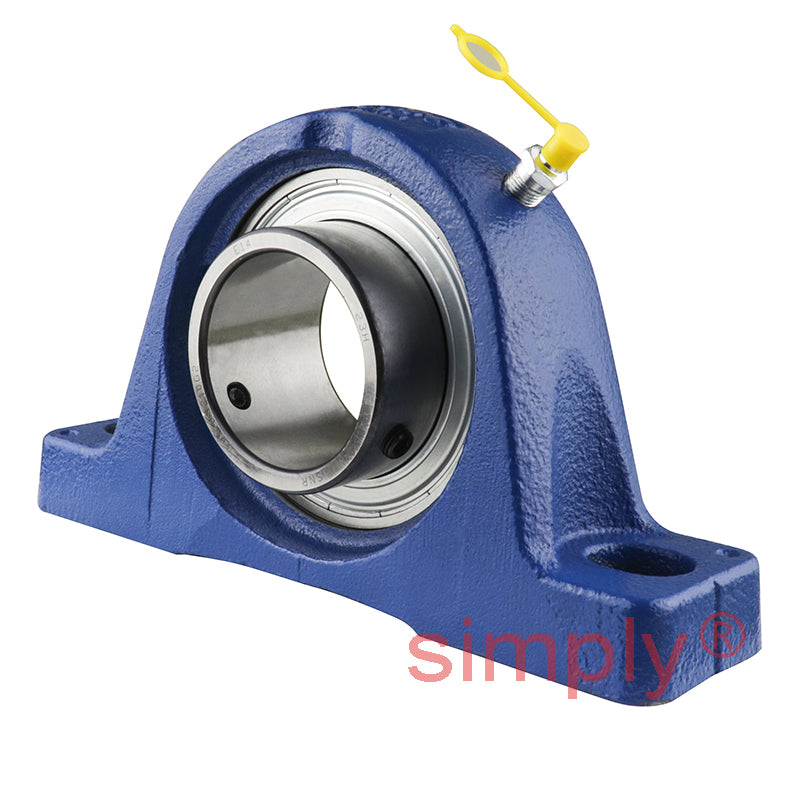

SNR USPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
SNR USPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
Regular price
CHF 44.72
ex VAT
Regular price
Sale price
CHF 44.72
ex VAT
In stock
Price Break
5+
CHF 44.27
10+
CHF 42.48
20+
CHF 41.59
50+
CHF 40.25
100+
CHF 39.35
500+
CHF 37.12
1000+
CHF 31.30
Couldn't load pickup availability
Description
Description
USPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- USPE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 48mm |
| A1 | 32mm |
| B | 41.2mm |
| H | 54mm |
| H1 | 21.5mm |
| H2 | 107mm |
| J | 150mm |
| L | 192mm |
| L1 | 54.5mm |
| N | 14mm |
| N1 | 29mm |
| S | 10.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.15 kg |
