SKU: USPE212CO-SNR

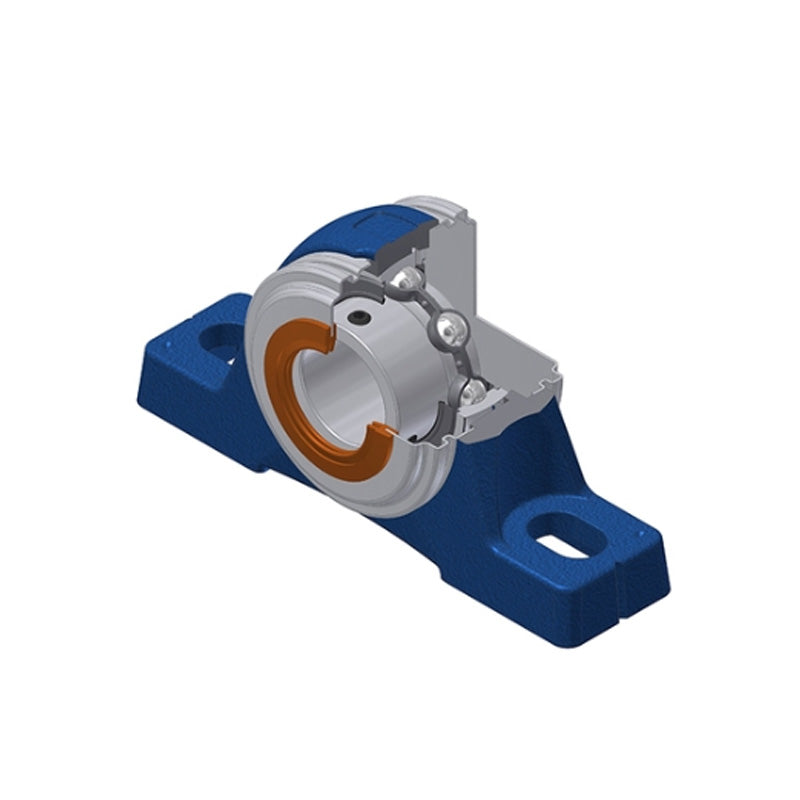

SNR USPE212CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USPE212CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price CHF 149.00 ex VAT
Regular price Sale price CHF 149.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 131.60
4+ CHF 126.28
9+ CHF 123.62
19+ CHF 119.64
49+ CHF 116.98
99+ CHF 110.33
499+ CHF 93.05
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

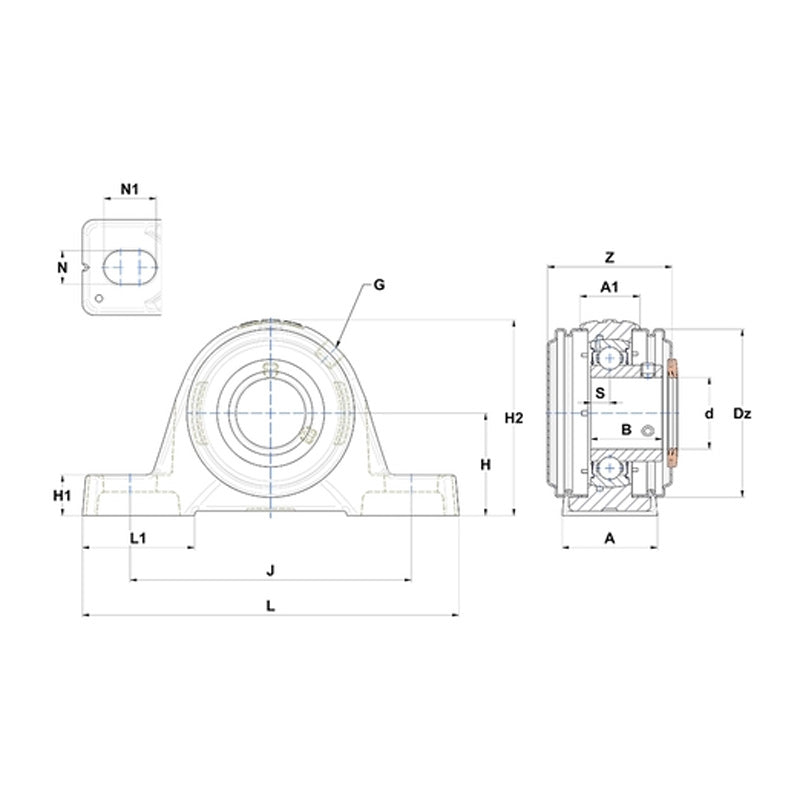

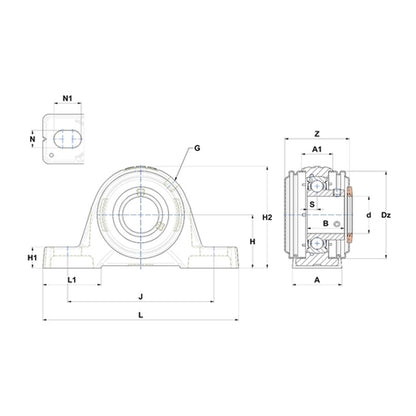

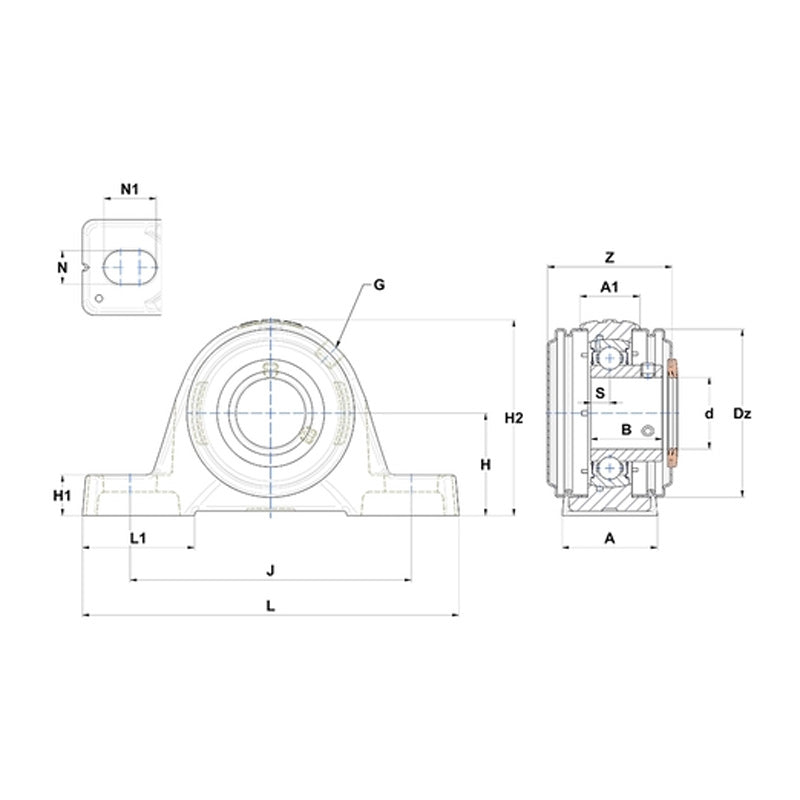

--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 53.7mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 14.9mm
Dz 120mm
Z 92.3mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.806 kg
