SKU: USPFL204-SNR

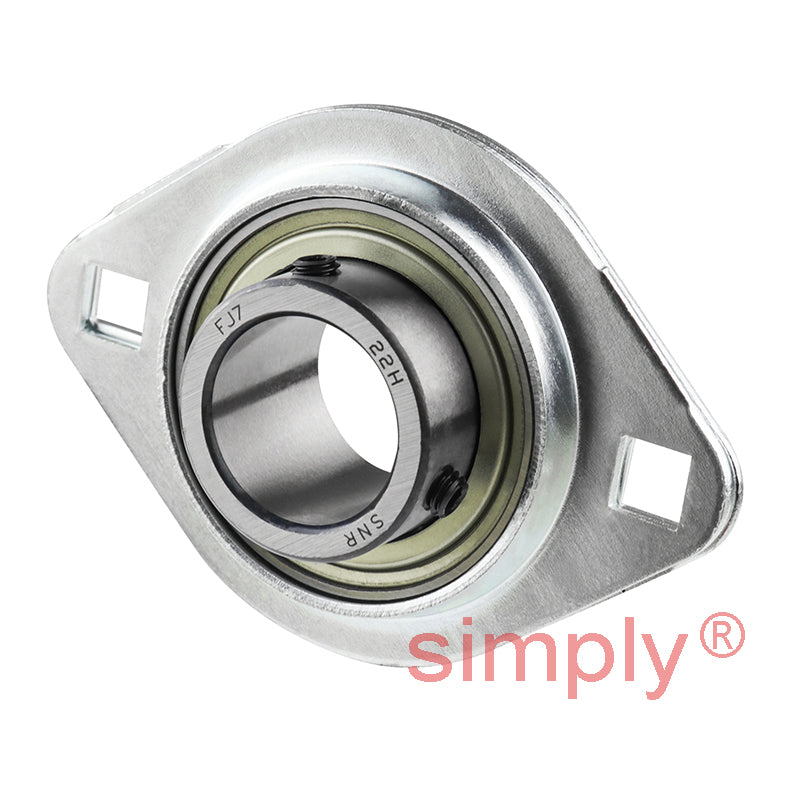

SNR USPFL204 Oval 2 Bolt Pressed Steel Bearing Housing with 20mm Insert - Allow 2-3 Days
SNR USPFL204 Oval 2 Bolt Pressed Steel Bearing Housing with 20mm Insert - Allow 2-3 Days
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
3+
CHF 19.74
4+
CHF 18.94
9+
CHF 18.54
19+
CHF 17.95
49+
CHF 17.55
99+
CHF 16.55
499+
CHF 13.96
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- USPFL
- Bolt Hole Centres:
- 4.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 7.7mm |
| A1 | 4.5mm |
| A2 | 18mm |
| B | 25mm |
| H | 91mm |
| J | 71.5mm |
| L | 68mm |
| N | 9mm |
| S | 7mm |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.22 kg |
