SKU: USPG206-SNR

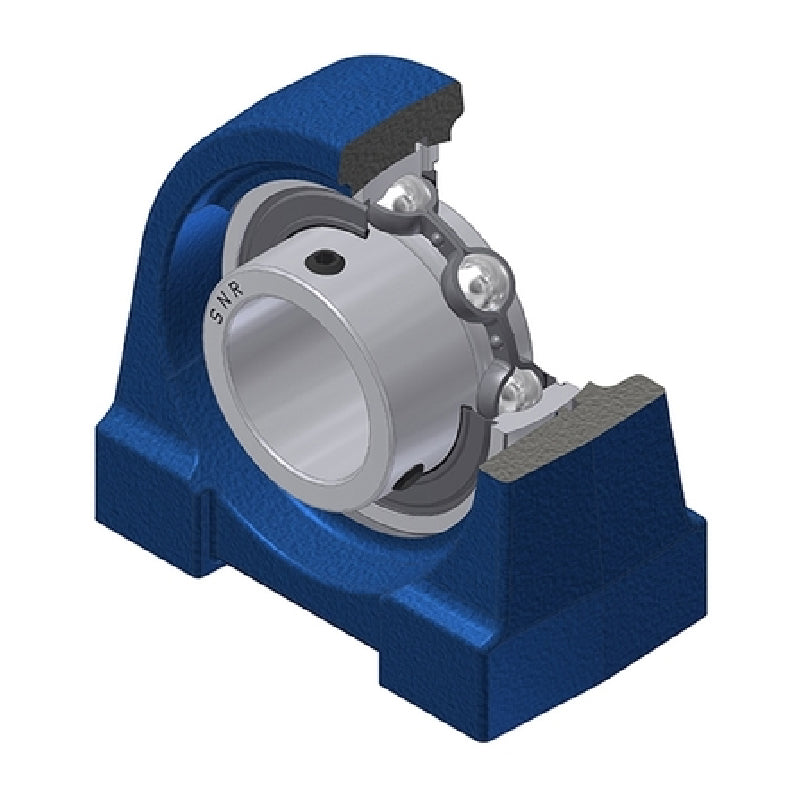

SNR USPG206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
SNR USPG206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
3+
CHF 35.07
4+
CHF 33.65
9+
CHF 32.94
19+
CHF 31.88
49+
CHF 31.17
99+
CHF 29.40
499+
CHF 24.79
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- USPG
- Bolt Hole Centres:
- 60mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 48mm |
| A1 | 25mm |
| B | 30mm |
| E | 18mm |
| H | 42.9mm |
| H1 | 17mm |
| H2 | 83mm |
| J | 60mm |
| L | 85mm |
| L1 | 25mm |
| N | M10 |
| S | 8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.07 kg |
