SKU: USPG210CC-SNR

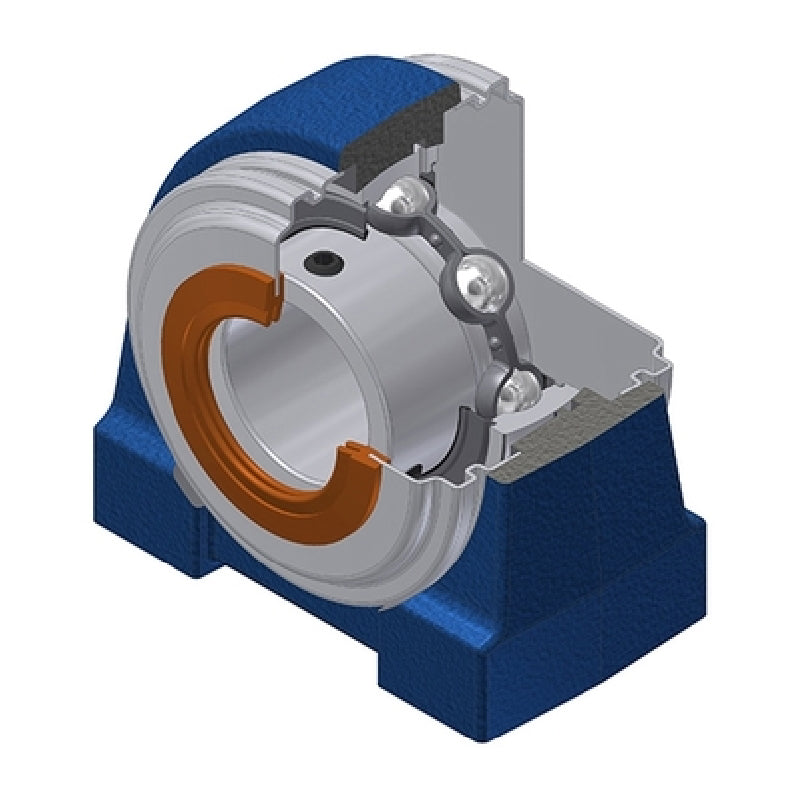

SNR USPG210CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USPG210CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
3+
CHF 98.73
4+
CHF 94.74
9+
CHF 92.75
19+
CHF 89.76
49+
CHF 87.76
99+
CHF 82.78
499+
CHF 69.81
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USPG
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 60mm |
| A1 | 35mm |
| B | 43.5mm |
| E | 25mm |
| H | 57.2mm |
| H1 | 21mm |
| H2 | 114mm |
| J | 95mm |
| L | 135mm |
| L1 | 40mm |
| N | M16 |
| S | 10.9mm |
| Dz | 100mm |
| Z | 76.1mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.89 kg |
