SKU: USPLE208-SNR

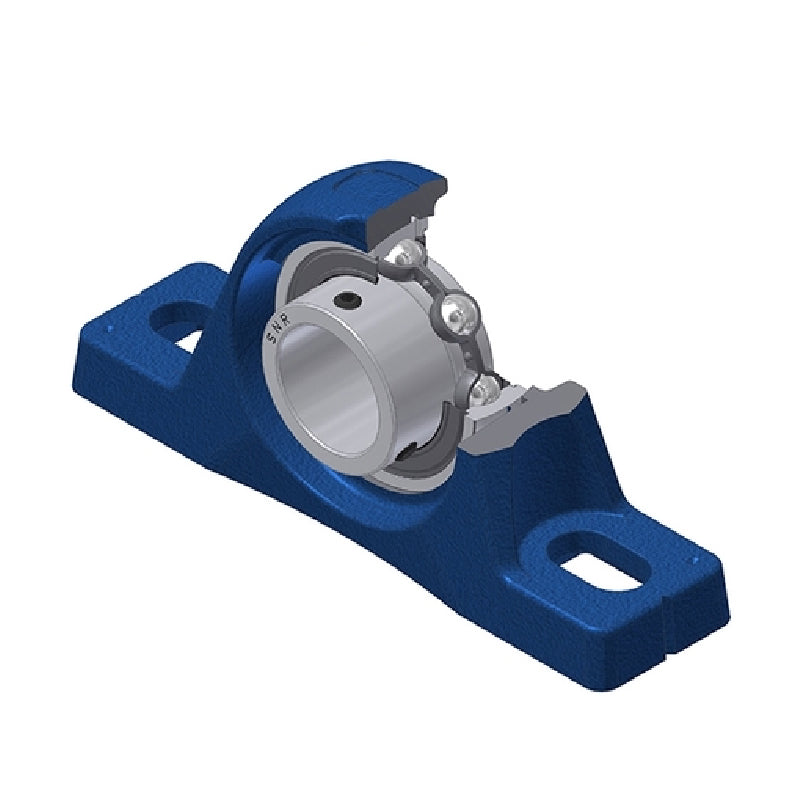

SNR USPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days

SNR USPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price CHF 40.00 ex VAT
Regular price Sale price CHF 40.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 35.10
4+ CHF 33.68
9+ CHF 32.97
19+ CHF 31.91
49+ CHF 31.20
99+ CHF 29.42
499+ CHF 24.82
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 51mm
A1 34.5mm
B 34mm
H 49.2mm
H1 18.5mm
H2 98.5mm
J 137.5mm
L 180.5mm
N 14mm
N1 24.5mm
S 9mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.9 kg
