SKU: USPP204-SNR

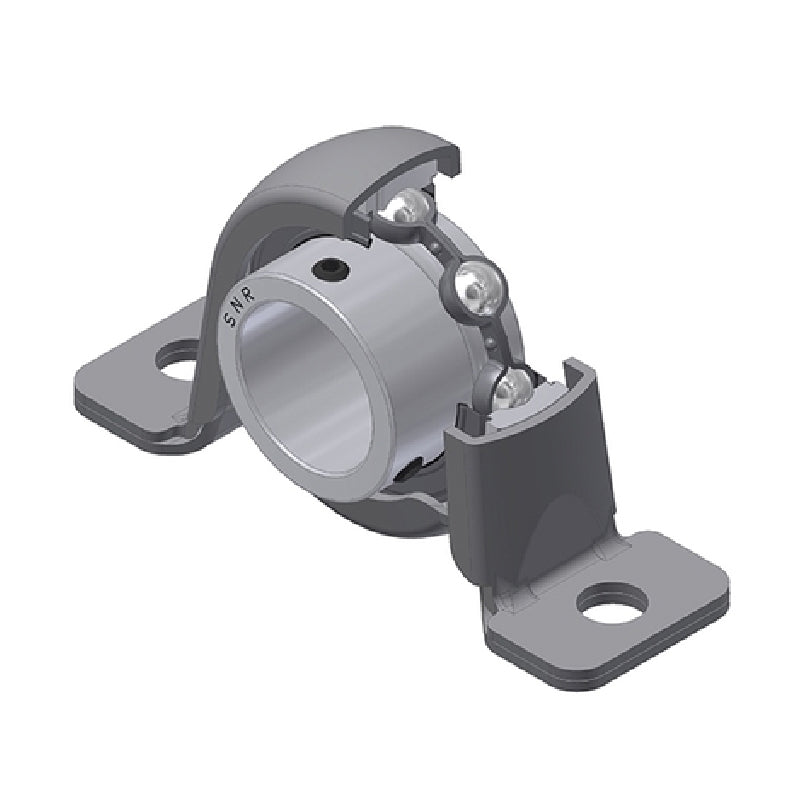

SNR USPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Insert - Allow 2-3 Days
SNR USPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Insert - Allow 2-3 Days
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
3+
CHF 13.15
4+
CHF 12.42
9+
CHF 12.27
19+
CHF 12.12
49+
CHF 11.97
99+
CHF 11.82
499+
CHF 11.08
999+
CHF 10.94
1999+
CHF 10.79
2999+
CHF 10.64
4999+
CHF 10.35
Description
Description
|
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- USPP
- Bolt Hole Centres:
- 76mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 31.7mm |
| A1 | 21.6mm |
| B | 25mm |
| H | 25.4mm |
| H1 | 2.4mm |
| H2 | 49.9mm |
| J | 76mm |
| L | 98.4mm |
| N | 9mm |
| S | 7mm |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.22 kg |
