SKU: USSP205CC-SNR

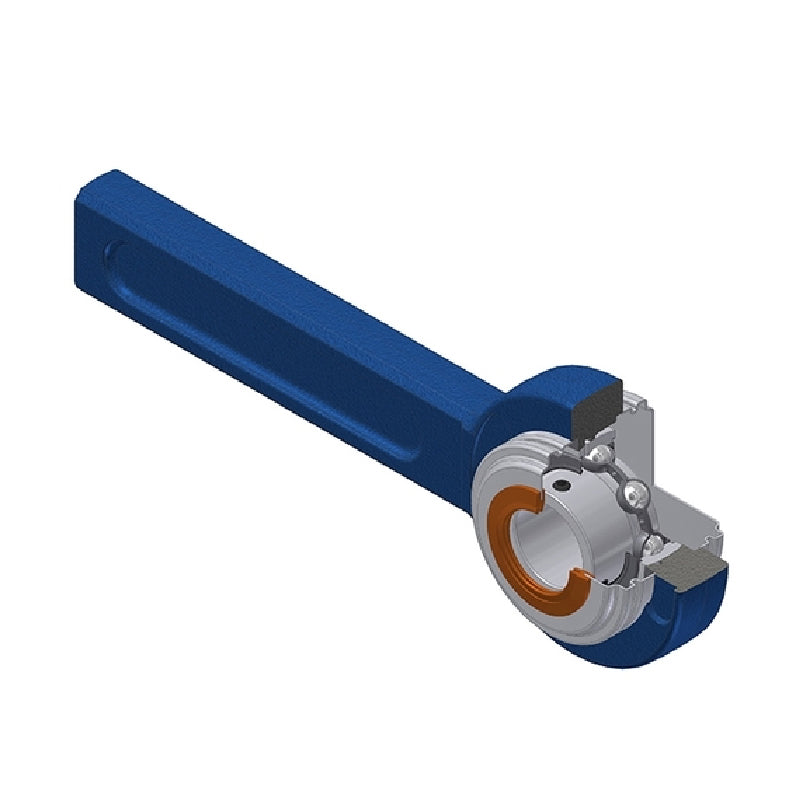

SNR USSP205CC Metric Cast Iron Tensioner Unit with 25mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USSP205CC Metric Cast Iron Tensioner Unit with 25mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price CHF 112.00 ex VAT
Regular price Sale price CHF 112.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 98.77
4+ CHF 94.78
9+ CHF 92.79
19+ CHF 89.79
49+ CHF 87.80
99+ CHF 82.81
499+ CHF 69.84
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

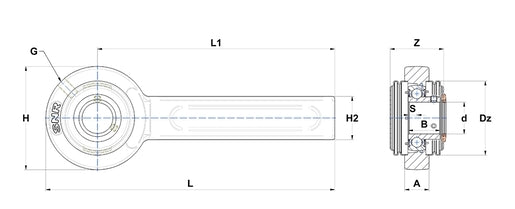

--- Dimensions
Shaft diameter 25mm
A 21mm
B 27mm
H 78mm
H2 41mm
L 264mm
L1 225mm
S 7.5mm
Dz 60mm
Z 47.8mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.541 kg
