SKU: UST204CO-SNR

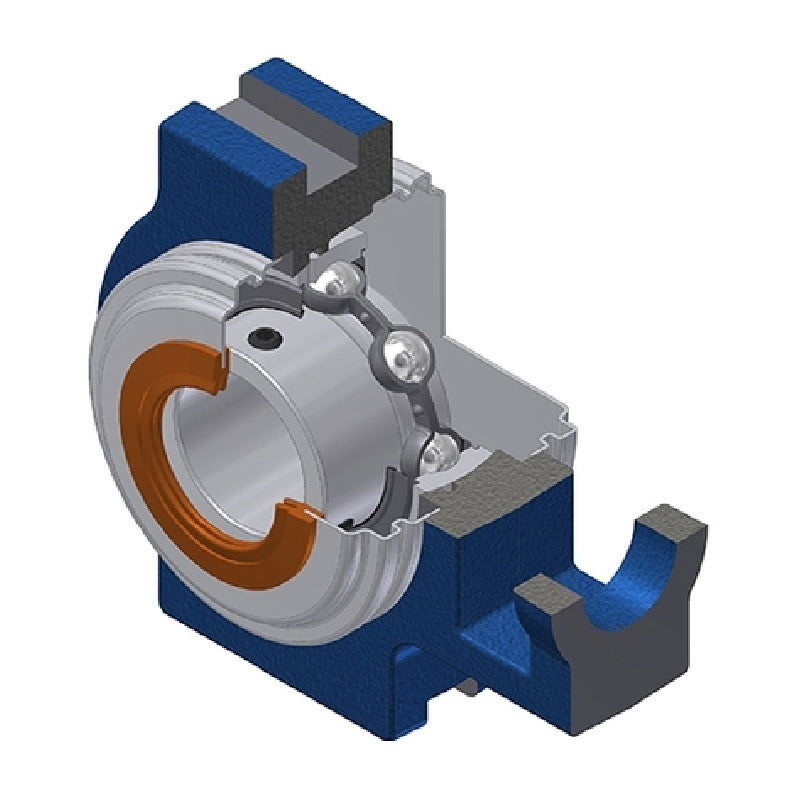

SNR UST204CO Metric Cast Iron Take Up Unit with 20mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UST204CO Metric Cast Iron Take Up Unit with 20mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
CHF 149.00
ex VAT
Regular price
Sale price
CHF 149.00
ex VAT
In stock
Price Break
3+
CHF 131.54
4+
CHF 126.23
9+
CHF 123.57
19+
CHF 119.58
49+
CHF 116.93
99+
CHF 110.28
499+
CHF 93.01
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 21mm |
| B | 25mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 94mm |
| L1 | 61mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| S | 7mm |
| Dz | 54mm |
| Z | 44.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.788 kg |
