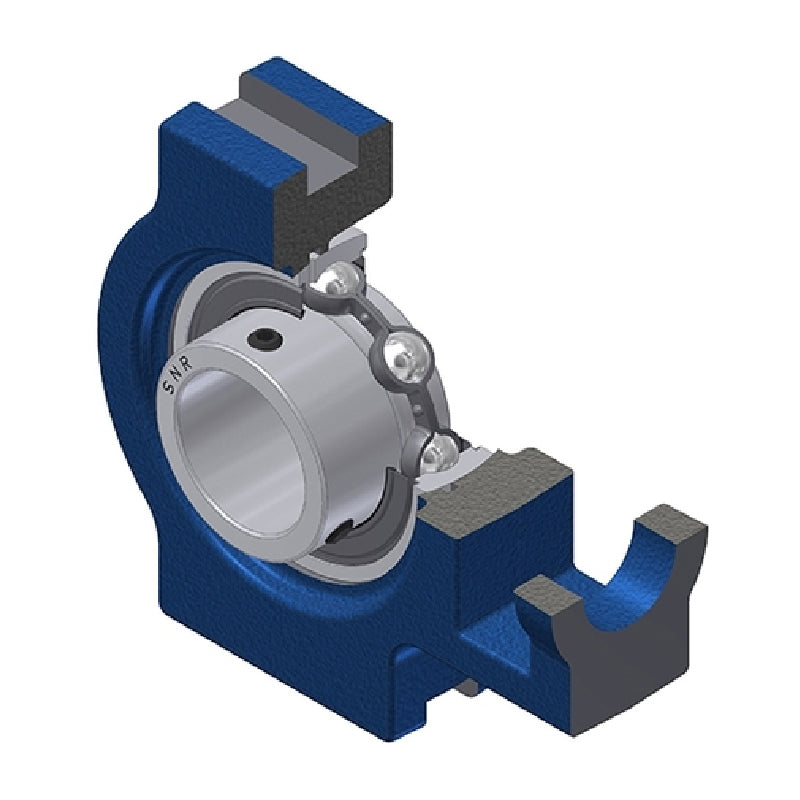

SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
3+
CHF 39.46
4+
CHF 37.25
9+
CHF 36.80
19+
CHF 36.36
49+
CHF 35.91
99+
CHF 35.47
499+
CHF 33.25
999+
CHF 32.81
1999+
CHF 32.37
2999+
CHF 31.92
4999+
CHF 31.04
Share this product
Description
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UST
Technical
Technical

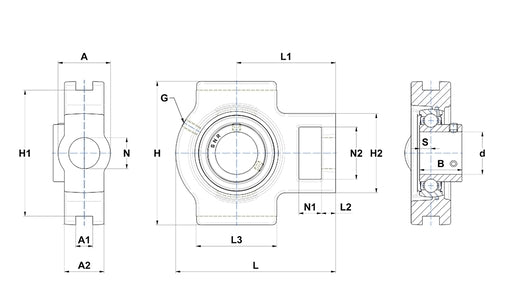

| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 37mm |
| A1 | 12mm |
| A2 | 30mm |
| B | 32mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 13mm |
| L3 | 64mm |
| N | 22mm |
| N1 | 16mm |
| N2 | 37mm |
| S | 8.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.52 kg |
