SKU: VHR-4-1/2

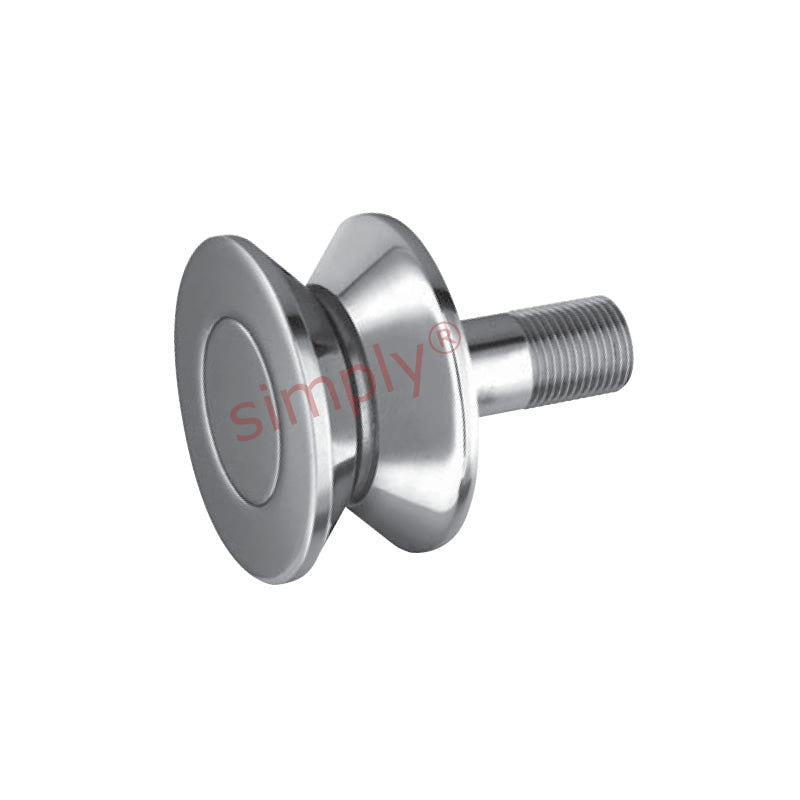

Major Brand VHR4-1/2 Hex Head V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter
Major Brand VHR4-1/2 Hex Head V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter
Regular price
CHF 353.00
ex VAT
Regular price
Sale price
CHF 353.00
ex VAT
Equivalent to: VHR-450-A VLR-4-1/2 VCF-4-1/2
In stock
Price Break
3+
CHF 281.36
4+
CHF 265.55
9+
CHF 262.39
19+
CHF 259.23
29+
CHF 256.07
39+
CHF 252.91
49+
CHF 237.10
59+
CHF 233.94
249+
CHF 230.78
499+
CHF 227.62
999+
CHF 221.30
Description
Description
|
V-Groove Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: VHR-450-A VLR-4-1/2 VCF-4-1/2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 4.5 inch |
|---|---|
| B | 2 inch |
| F | 3 inch |
| G | 1 inch |
| K | 1.25 inch |
| L | 2.5 inch |
| M | 1.75 inch |
| Thread class 2A N | 1-1/4-12 UNF |
| R | 1.75 inch |
| S | 0.062 inch |
| Basic dynamic rating | 14300 lbs |
| Dynamic thrust load rating | 5790 lbs |
| Max static capacity | 20000 lbs |
