SKU: VHR-5-1/2

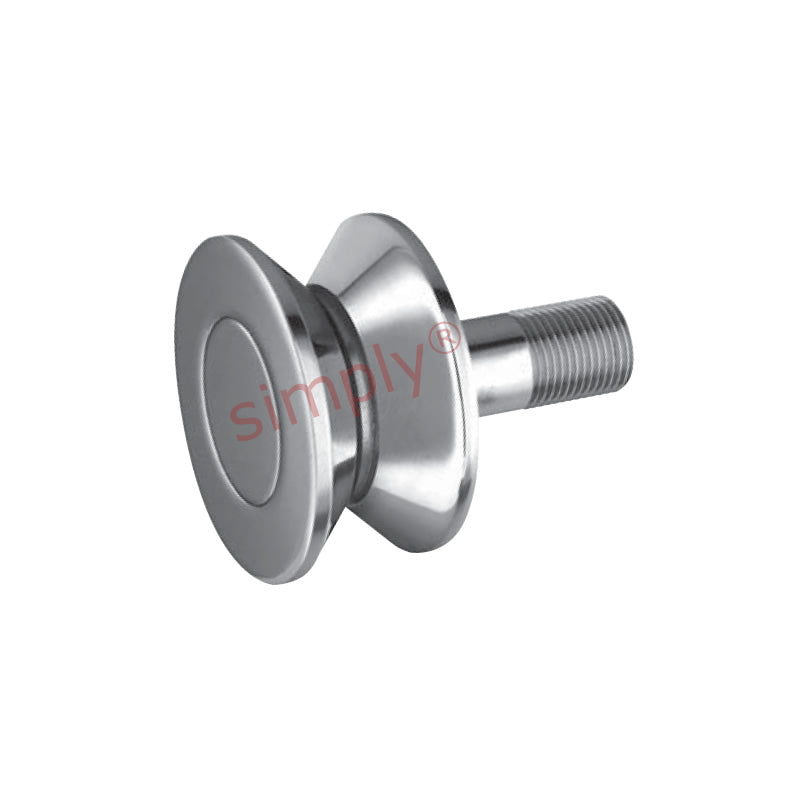

Major Brand VHR5-1/2 Hex Head V-Groove Hi-Roller Bearing 5-1/2 inch Outside Diameter Allow 7-10 Days
Major Brand VHR5-1/2 Hex Head V-Groove Hi-Roller Bearing 5-1/2 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 483.00
ex VAT
Regular price
Sale price
CHF 483.00
ex VAT
Equivalent to: VHR-550-A VLR-5-1/2 VCF-5-1/2
In stock
Price Break
3+
CHF 384.45
4+
CHF 362.85
9+
CHF 358.54
19+
CHF 354.22
29+
CHF 349.90
39+
CHF 345.58
49+
CHF 323.98
59+
CHF 319.66
249+
CHF 315.34
499+
CHF 311.02
999+
CHF 302.38
Description
Description
|
V-Groove Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: VHR-550-A VLR-5-1/2 VCF-5-1/2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 127mm = 5 inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 5 inch |
|---|---|
| B | 2 inch |
| F | 4 inch |
| G | 1 inch |
| K | 1.25 inch |
| L | 2.75 inch |
| M | 1.75 inch |
| Thread class 2A N | 1-1/4-12 UNF |
| R | 1.75 inch |
| S | 0.062 inch |
| Basic dynamic rating | 14300 lbs |
| Dynamic thrust load rating | 5790 lbs |
| Max static capacity | 20000 lbs |
