SKU: VHRE-1-1/2-CARTER

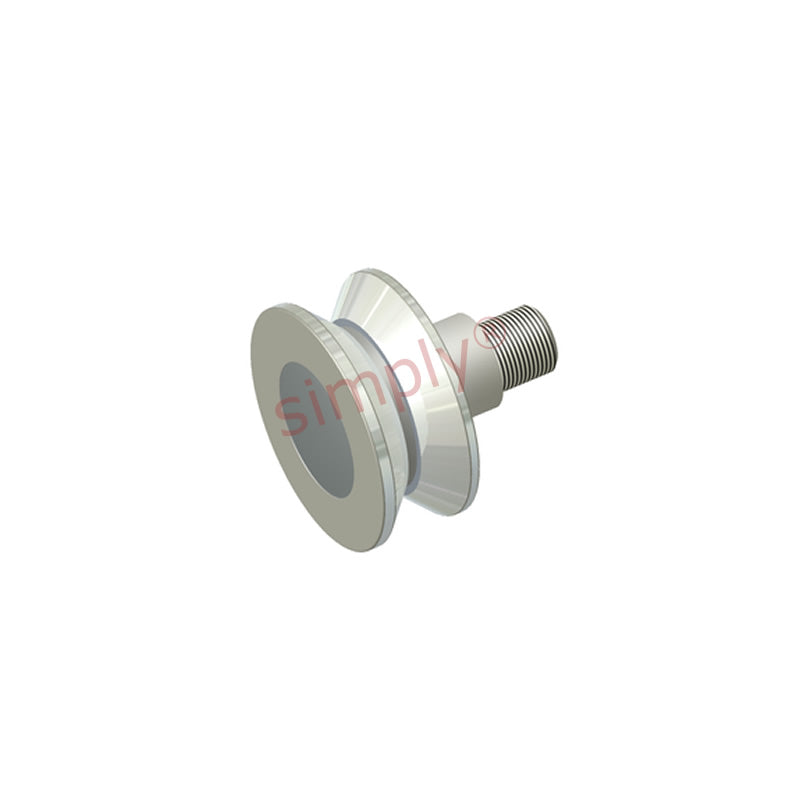

Carter VHRE1-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 1-1/2 inch Outside Diameter Allow 7-10 Days
Carter VHRE1-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 1-1/2 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 156.61
ex VAT
Regular price
Sale price
CHF 156.61
ex VAT
In stock
Price Break
10+
CHF 139.38
19+
CHF 131.55
29+
CHF 129.99
39+
CHF 128.42
49+
CHF 126.85
74+
CHF 125.29
99+
CHF 117.46
199+
CHF 115.89
249+
CHF 114.33
499+
CHF 112.76
999+
CHF 109.63
Couldn't load pickup availability
Description
Description
|
V-Groove Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Carter - High Quality
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 18.57mm = 0.731 inch
Technical
Technical
| A | 1.5 inch |
|---|---|
| B | 0.731 inch |
| F | 1.125 inch |
| G | 0.391 inch |
| K | 0.4375 inch |
| L | 1 inch |
| M | 0.5 inch |
| Thread class 2A N | 7/16-20 UNF |
| R | 0.75 inch |
| S | 0.031 inch |
| T | 0.625 inch |
| U | 0.5 inch |
| W | 0.03 inch |
| Basic dynamic rating | 630 lbs |
| Dynamic thrust load rating | 140 lbs |
| Max static capacity | 230 lbs |
