SKU: VHRE-2-1/2

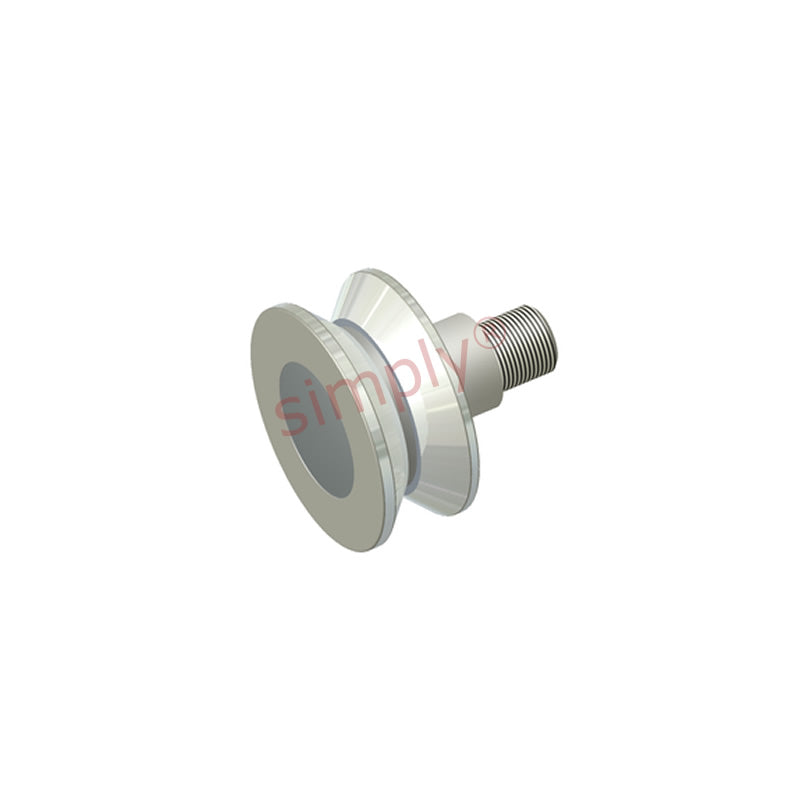

Major Brand VHRE2-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 2-1/2 inch Outside Diameter Allow 7-10 Days
Major Brand VHRE2-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 2-1/2 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 197.00
ex VAT
Regular price
Sale price
CHF 197.00
ex VAT
Equivalent to: VHRE-250-A VCFE-2-1/2 VLRE-2-1/2
In stock
Price Break
3+
CHF 156.60
4+
CHF 147.80
9+
CHF 146.04
19+
CHF 144.28
29+
CHF 142.52
39+
CHF 140.76
49+
CHF 131.96
59+
CHF 130.20
249+
CHF 128.44
499+
CHF 126.68
999+
CHF 123.17
Description
Description
|
V-Groove Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: VHRE-250-A VCFE-2-1/2 VLRE-2-1/2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 33.35mm = 1.313 inch
Technical
Technical

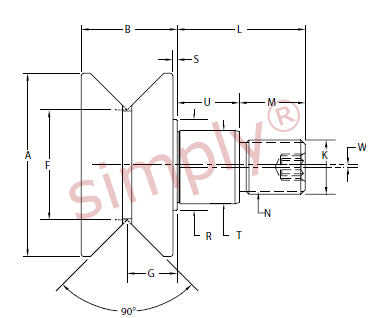

| A | 2.5 inch |
|---|---|
| B | 1.313 inch |
| F | 1.5 inch |
| G | 0.688 inch |
| K | 0.75 inch |
| L | 1.75 inch |
| M | 7/8 inch |
| Thread class 2A N | 3/4-16 UNF |
| R | 1.375 inch |
| S | 0.062 inch |
| T | 1 inch |
| U | 0.855 inch |
| W | 0.03 inch |
| Basic dynamic rating | 2760 lbs |
| Dynamic thrust load rating | 680 lbs |
| Max static capacity | 1100 lbs |
