SKU: VHRE-3-1/2

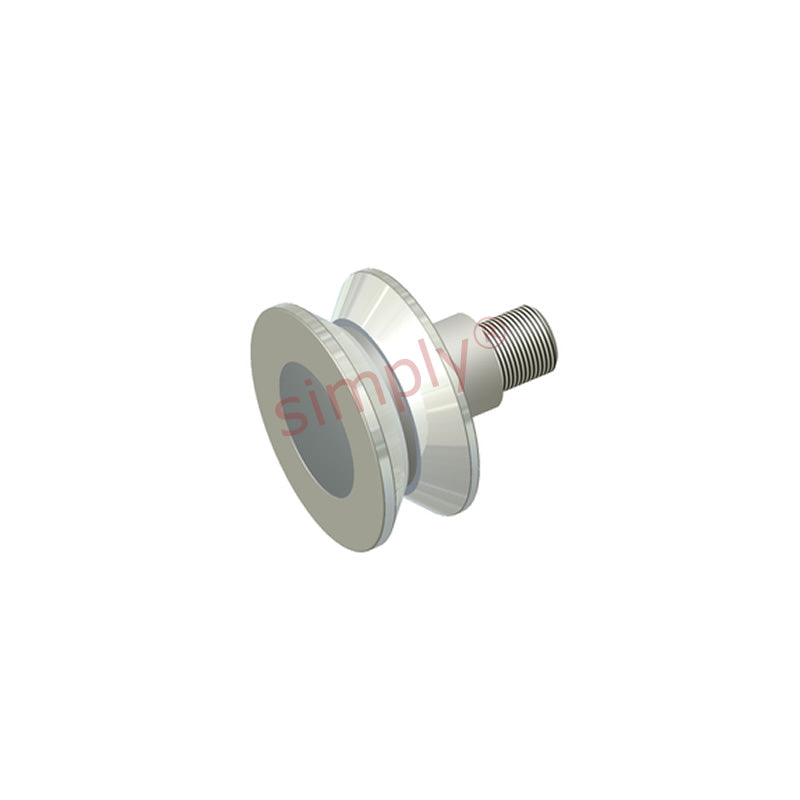

Major Brand VHRE3-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 3-1/2 inch Outside Diameter Allow 7-10 Days
Major Brand VHRE3-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 3-1/2 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 236.00
ex VAT
Regular price
Sale price
CHF 236.00
ex VAT
Equivalent to: VHRE-350-A VCFE-3-1/2 VLRE-3-1/2
In stock
Price Break
3+
CHF 187.57
4+
CHF 177.04
9+
CHF 174.93
19+
CHF 172.82
29+
CHF 170.71
39+
CHF 168.61
49+
CHF 158.07
59+
CHF 155.96
249+
CHF 153.85
499+
CHF 151.75
999+
CHF 147.53
Description
Description
|
V-Groove Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: VHRE-350-A VCFE-3-1/2 VLRE-3-1/2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 42.88mm = 1.688 inch

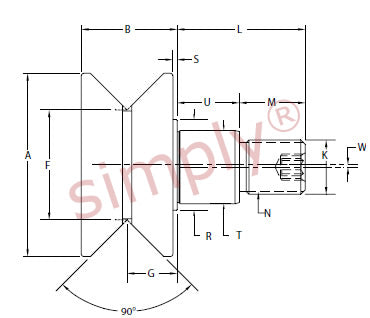

Technical
Technical
| A | 3.5 inch |
|---|---|
| B | 1.688 inch |
| F | 2.25 inch |
| G | 0.875 inch |
| K | 0.875 inch |
| L | 2 inch |
| M | 1-1/8 inch |
| Thread class 2A N | 7/8-14 UNF |
| R | 1.5 inch |
| S | 0.062 inch |
| T | 1.187 inch |
| U | 0.98 inch |
| W | 0.06 inch |
| Basic dynamic rating | 5190 lbs |
| Dynamic thrust load rating | 1400 lbs |
| Max static capacity | 2270 lbs |
