SKU: VHRE-4-1/2

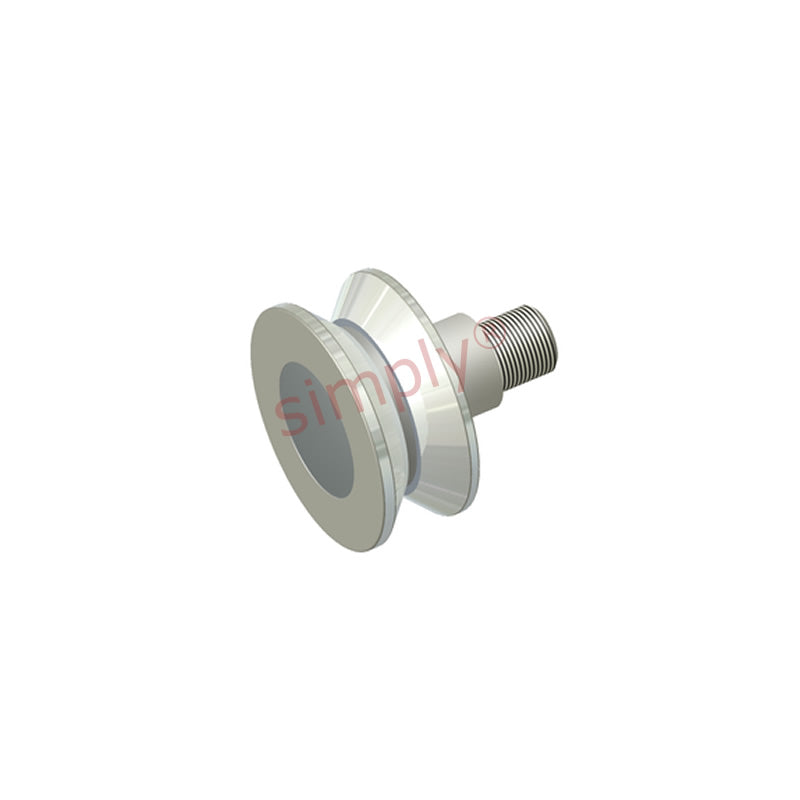

Major Brand VHRE4-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter Allow 7-10 Days
Major Brand VHRE4-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 435.00
ex VAT
Regular price
Sale price
CHF 435.00
ex VAT
Equivalent to: VHRE-450-A VCFE-4-1/2 VLRE-4-1/2
In stock
Price Break
3+
CHF 346.33
4+
CHF 326.87
9+
CHF 322.98
19+
CHF 319.09
29+
CHF 315.20
39+
CHF 311.30
49+
CHF 291.85
59+
CHF 287.96
249+
CHF 284.06
499+
CHF 280.17
999+
CHF 272.39
Description
Description
|
V-Groove Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: VHRE-450-A VCFE-4-1/2 VLRE-4-1/2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 4.5 inch |
|---|---|
| B | 2 inch |
| F | 3 inch |
| G | 1 inch |
| K | 1.25 inch |
| L | 2.5 inch |
| M | 1-1/4 inch |
| Thread class 2A N | 1-1/4-12 UNF |
| R | 2.31 inch |
| S | 0.062 inch |
| T | 1.75 inch |
| U | 1.23 inch |
| W | 0.06 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
