SKU: VHRE-4-1/2-CARTER

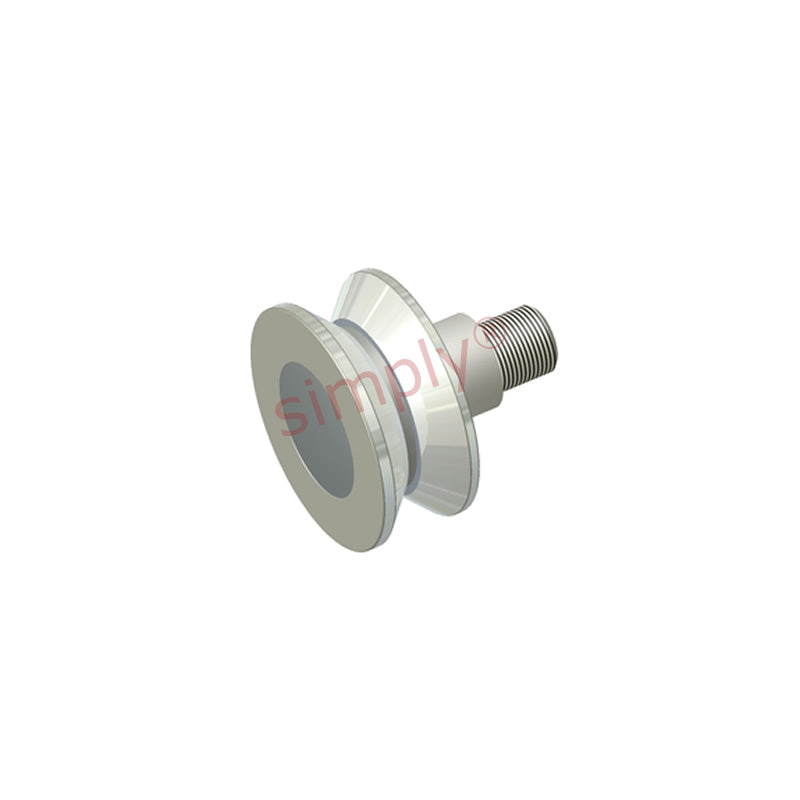

Carter VHRE4-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter Allow 7-10 Days
Carter VHRE4-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 436.50
ex VAT
Regular price
Sale price
CHF 436.50
ex VAT
In stock
Price Break
10+
CHF 388.49
19+
CHF 366.66
29+
CHF 362.30
39+
CHF 357.93
49+
CHF 353.57
74+
CHF 349.20
99+
CHF 327.38
199+
CHF 323.01
249+
CHF 318.65
499+
CHF 314.28
999+
CHF 305.55
Couldn't load pickup availability
Description
Description
|
V-Groove Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Carter - High Quality
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 4.5 inch |
|---|---|
| B | 2 inch |
| F | 3 inch |
| G | 1 inch |
| K | 1.25 inch |
| L | 2.5 inch |
| M | 1-1/4 inch |
| Thread class 2A N | 1-1/4-12 UNF |
| R | 2.31 inch |
| S | 0.062 inch |
| T | 1.75 inch |
| U | 1.23 inch |
| W | 0.06 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
