SKU: W06-SKF

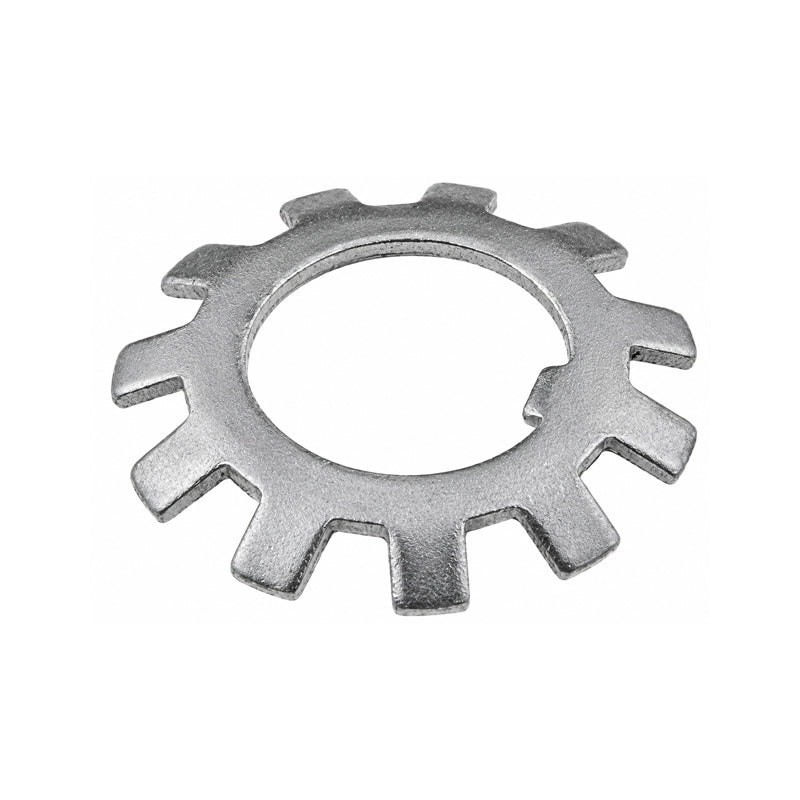

SKF W06 Locking Tab Washer 1.193x1.922x0.04 inch
SKF W06 Locking Tab Washer 1.193x1.922x0.04 inch
Regular price
CHF 7.43
ex VAT
Regular price
Sale price
CHF 7.43
ex VAT
In stock
Price Break
5+
CHF 7.36
10+
CHF 7.06
20+
CHF 6.91
50+
CHF 6.69
100+
CHF 6.54
500+
CHF 6.17
1000+
CHF 5.20
Couldn't load pickup availability
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.30mm = 1.193 inch
Technical
Technical
| d | 1.193 inch |
|---|---|
| d<sub>1</sub> | 1.53 inch |
| d<sub>2</sub> | 1.922 inch |
| B | 0.04 inch |
| f | 0.176 inch |
| M | 1.093 inch |
| V | 0.094 inch |
| Mass | 0.0068 kg |
