SKU: W09-SKF

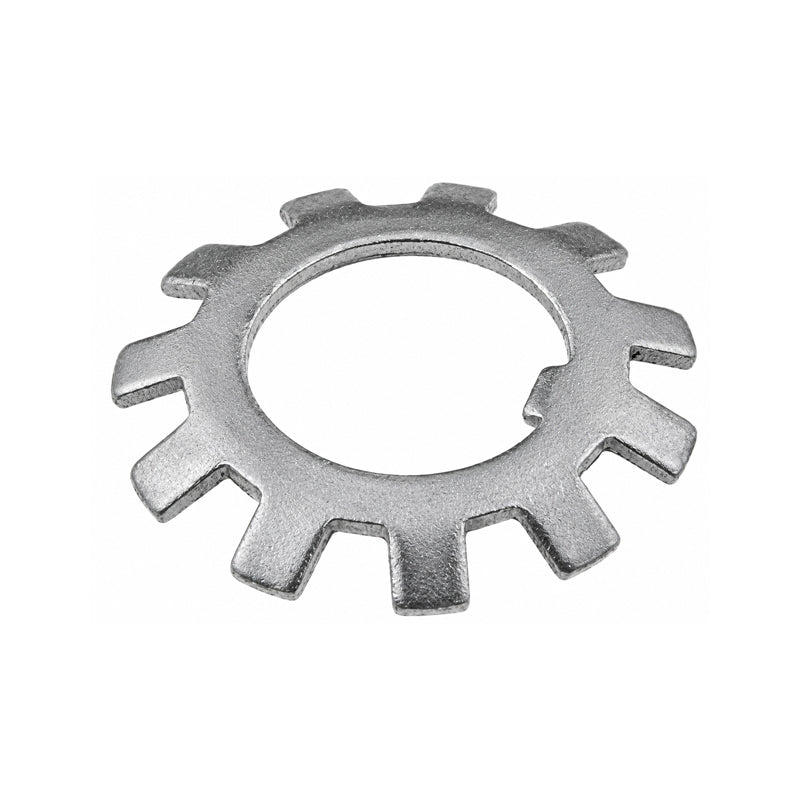

SKF W09 Locking Tab Washer 1.792x2.734x0.048 inch
SKF W09 Locking Tab Washer 1.792x2.734x0.048 inch
Regular price
CHF 6.18
ex VAT
Regular price
Sale price
CHF 6.18
ex VAT
In stock
Price Break
5+
CHF 6.12
10+
CHF 5.87
20+
CHF 5.75
50+
CHF 5.56
100+
CHF 5.44
500+
CHF 5.13
1000+
CHF 4.33
Couldn't load pickup availability
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45.52mm = 1.792 inch
Technical
Technical
| d | 1.792 inch |
|---|---|
| d<sub>1</sub> | 2.311 inch |
| d<sub>2</sub> | 2.734 inch |
| B | 0.048 inch |
| f | 0.29 inch |
| M | 1.687 inch |
| V | 0.125 inch |
| Mass | 0.0181 kg |
