SKU: W11-SKF

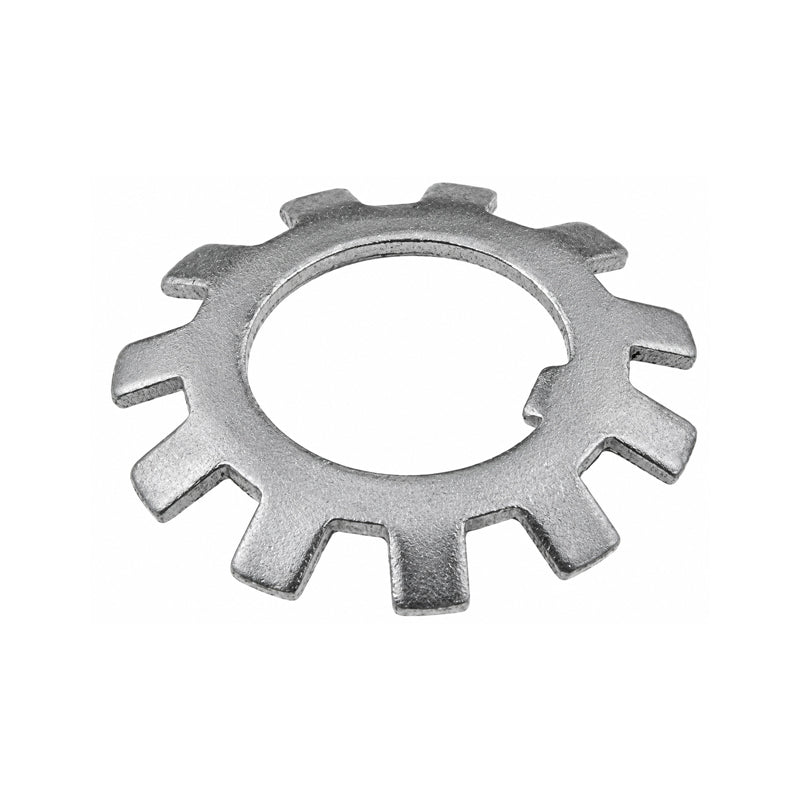

SKF W11 Locking Tab Washer 2.182x3.109x0.053 inch
SKF W11 Locking Tab Washer 2.182x3.109x0.053 inch
Regular price
CHF 8.67
ex VAT
Regular price
Sale price
CHF 8.67
ex VAT
In stock
Price Break
5+
CHF 8.58
10+
CHF 8.24
20+
CHF 8.06
50+
CHF 7.80
100+
CHF 7.63
500+
CHF 7.20
1000+
CHF 6.07
Couldn't load pickup availability
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.42mm = 2.182 inch
Technical
Technical
| d | 2.182 inch |
|---|---|
| d<sub>1</sub> | 2.686 inch |
| d<sub>2</sub> | 3.109 inch |
| B | 0.053 inch |
| f | 0.29 inch |
| M | 2.069 inch |
| V | 0.125 inch |
| Mass | 0.0191 kg |
