SKU: W15-SKF

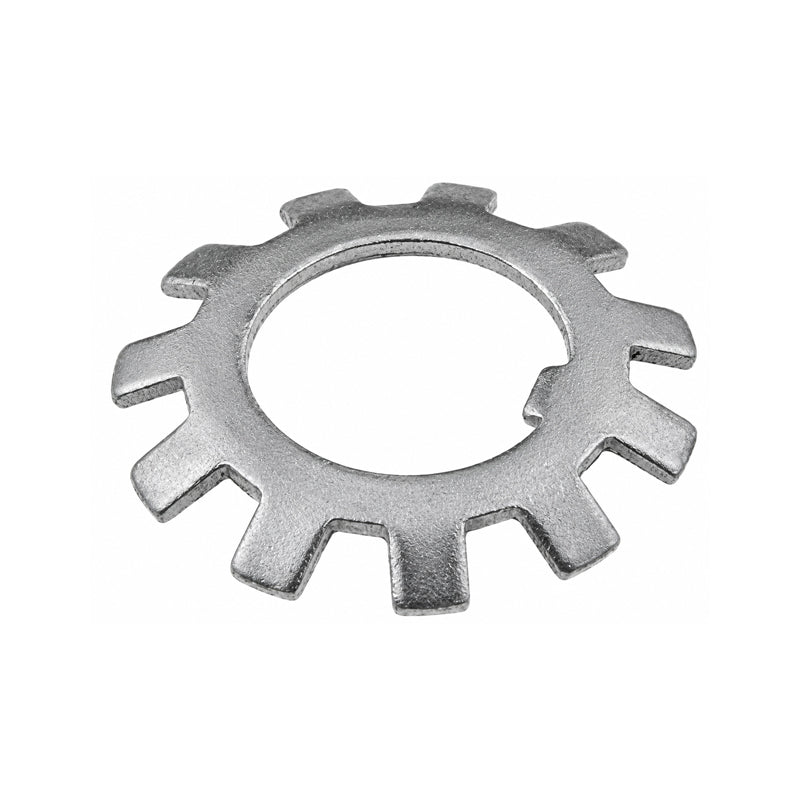

SKF W15 Locking Tab Washer 2.973x4.109x0.062 inch
SKF W15 Locking Tab Washer 2.973x4.109x0.062 inch
Regular price
CHF 22.37
ex VAT
Regular price
Sale price
CHF 22.37
ex VAT
In stock
Price Break
5+
CHF 22.15
10+
CHF 21.25
20+
CHF 20.80
50+
CHF 20.13
100+
CHF 19.69
500+
CHF 18.57
1000+
CHF 15.66
Couldn't load pickup availability
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75.51mm = 2.973 inch
Technical
Technical
| d | 2.973 inch |
|---|---|
| d<sub>1</sub> | 3.593 inch |
| d<sub>2</sub> | 4.109 inch |
| B | 0.062 inch |
| f | 0.29 inch |
| M | 2.834 inch |
| V | 0.188 inch |
| Mass | 0.0408 kg |
